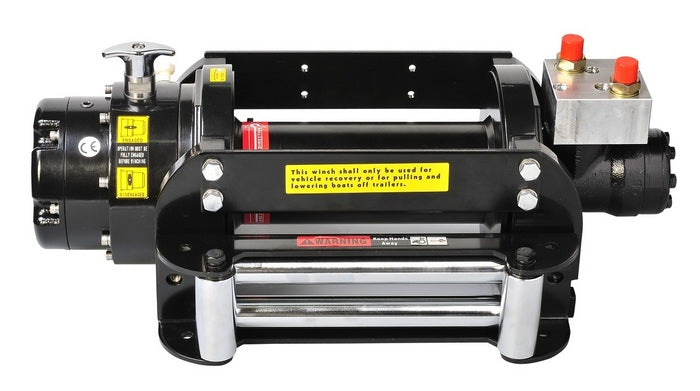

BADGER 10 HYDRAULIC WINCH

BADGER 10 HYDRAULIC WINCH

Regular price $1,390.00 USD
Regular price Sale price $1,390.00 USD
Sale Sold out
Part Number 681001

Line Pull and Rope Capacity:

Layer of Wire Rope
Pull by Layer
lb/ kg
Total Rope on the Drum ft / m Line Speed
at 60 l/min (15.9 g/min)
fpm / mpm
1st 10,000 / 4,535 26.2 / 8.0 46.0 / 14.0
2nd 8,369 / 3,796 57.4 / 17.5 53.6 / 16.3
3rd 7,196 / 3,264 89.0 / 27.0 62.3 / 19.0



Specifications:

  • Line Speed (at 1st layer of rope) 46 fpm at 15.9 g/min (14 mpm at 60 l/min)
  • Operation Pressure 2,175 psi / 150 bar
  • Max Oil Flow 15.9 g/min (60 l/min)
  • Hydraulic Motor 5.9 cu in (97.3 cc)
  • Gear Ratio 2-stage planetary gear 16:1
  • Winch Construction Aluminum die cast housings with steel drum
  • Clutch (Freespooling) Rotating ring gear
  • Brake Spring applied drag brake together with supplied over-center valve
  • Rotation of Winch Wire rope shall be under-wound orientation only
  • Drum Barrel Diameter 4.0 inches (102 mm)
  • Drum Flange Diameter 7.9 inches (201.5 mm)
  • Distance Between Flanges 10 inches (253 mm)

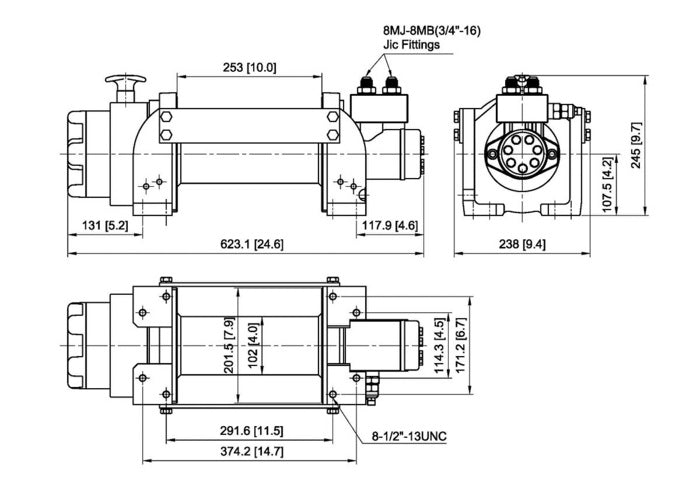

  • Mounting Bolt Pattern 11.5" x 6.7" (291.6 x 171.2 mm) ; 14.7" x 4.5" (374.2 x 114.3 mm)
  • Wire Rope Recommended 7/16" x 89' (11 mm x 27.1 m)
  • Winch Weight 81.4 lbs (37 kg)
  • Gross Weight 102.5 lbs (46.6 kg)
  • Box Dimensions 26.5" x 14.6" x 11.2" (665 x 370 x 285 mm)
