COMEUP USA

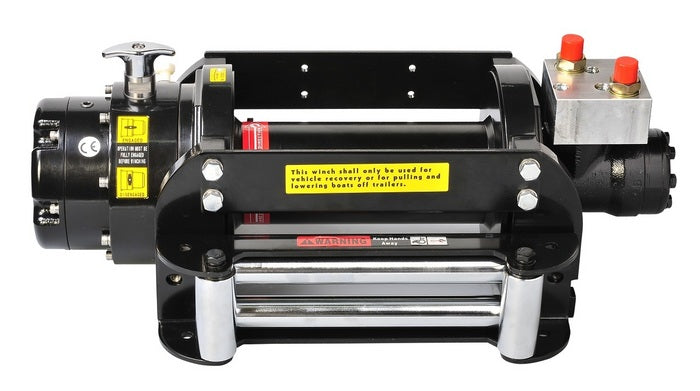

BADGER 12 HYDRAULIC WINCH
BADGER 12 HYDRAULIC WINCH
Regular price
$1,510.00 USD
Regular price
Sale price
$1,510.00 USD
Unit price
/
per
Couldn't load pickup availability
Part Number 681201
Line Pull and Rope Capacity:
| Layer of Wire Rope |
Pull by Layer lb/ kg |
Total Rope on the Drum ft / m | Line Speed at 60 l/min (15.9 g/min) fpm / mpm |
| 1st | 12,000 / 5,440 | 23.0 / 7.0 | 36.0 / 11.0 |
| 2nd | 10,075 / 4,570 | 50.9 / 15.5 | 43.3 / 13.2 |
| 3rd | 8 684 / 3,939 | 82.0 / 25.0 | 51.2 / 15.6 |
Specifications:
- Line Speed (at 1st layer of rope) 36 fpm at 15.9 g/min (11 mpm at 60 l/min)
- Operation Pressure 2,175 psi / 150 bar
- Max Oil Flow 15.9 g/min (60 l/min)
- Hydraulic Motor 7.6 cu in (125 cc)
- Gear Ratio 2-stage planetary gear 16:1
- Winch Construction Aluminum die cast housings with steel drum
- Clutch (Freespooling) Rotating ring gear
- Brake Spring applied drag brake together with supplied over-center valve
- Rotation of Winch Wire rope shall be under-wound orientation only

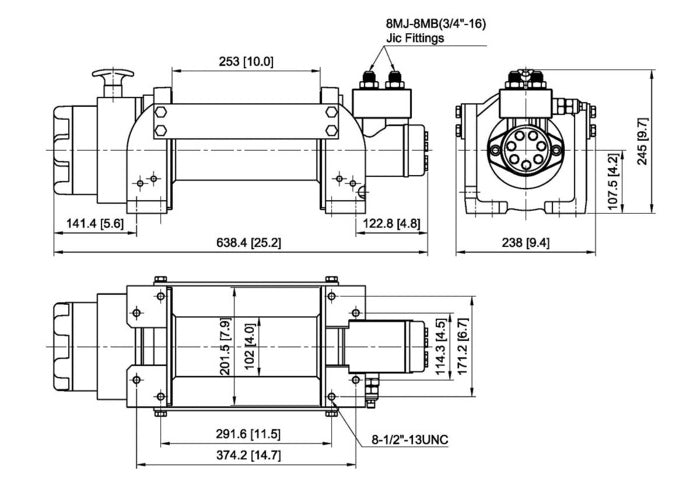

- Drum Barrel Diameter 4.0 inches (102 mm)
- Drum Flange Diameter 7.9 inches (201.5 mm)
- Distance Between Flanges 10 inches (253 mm)
- Mounting Bolt Pattern 11.5" x 6.7" (291.6 x 171.2 mm) ; 14.7" x 4.5" (374.2 x 114.3 mm)
- Wire Rope Recommended 1/2" x 82' (12.7 mm x 25 m)
- Winch Weight 81.4 lbs (37 kg)
- Gross Weight 102.5 lbs (46.6 kg)
- Box Dimensions 26.5" x 14.6" x 11.2" (665 x 370 x 285 mm)
