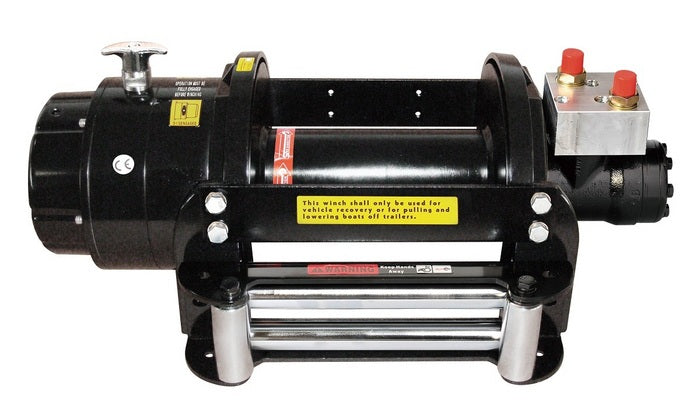

BADGER 18 HYDRAULIC WINCH
BADGER 18 HYDRAULIC WINCH
Regular price
$1,820.00 USD
Regular price
Sale price
$1,820.00 USD
Unit price
/
per
Couldn't load pickup availability
Part Number 681819
Line Pull and Rope Capacity:
| Layer of Wire Rope |
Pull by Layer lb/ kg |
Total Rope on the Drum ft / m | Line Speed at 60 l/min (15.9 g/min) fpm / mpm |
| 1st | 18,000 / 8,165 | 23.3 / 7.1 | 23.0 / 7.0 |
| 2nd | 14,767 / 6,698 | 51.5 / 15.7 | 28.5 / 8.7 |
| 3rd | 12,500 / 5,670 | 85.0 / 25.9 | 33.8 / 10.3 |
| 4th | 10,838 / 4,916 | 123.4 / 37.6 | 37.1 / 11.3 |
| 5th | 9,564 / 4,338 | 165.0 / 50.3 | 44.0 / 13.4 |
Specifications:
- Line Speed (at 1st layer of rope) 23 fpm at 15.9 g/min (7 mpm at 60 l/min)
- Operation Pressure 2,175 psi (150 bar)
- Max Oil Flow 15.9 g/min (60 l/min)
- Hydraulic Motor 9.5 cu in (156 cc)
- Gear Ratio 2-stage planetary gear 19.4:1
- Winch Construction Aluminum die cast housings with steel drum
- Clutch (Freespooling) Rotating ring gear
- Brake Spring applied drag brake together with supplied over-center valve
- Rotation of Winch Wire rope shall be under-wound orientation only

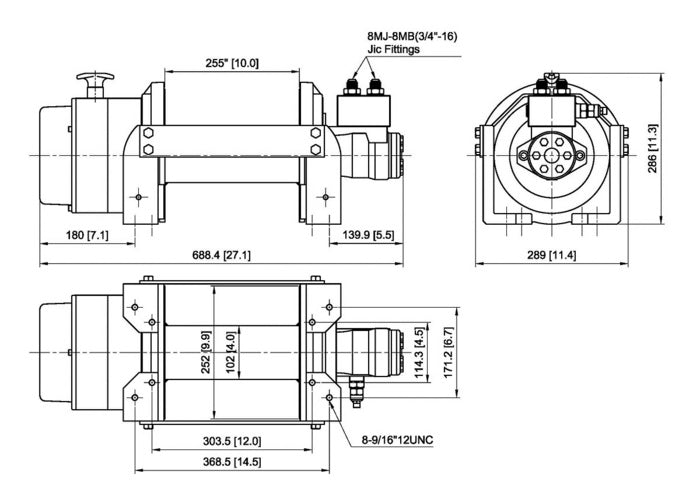

- Drum Barrel Diameter 4.0 inches (102 mm)
- Drum Flange Diameter 9.9 inches (252 mm)
- Distance Between Flanges 10 inches (255 mm)
- Mounting Bolt Pattern 12.0" x 4.5" (303.5 x 114.3 mm) ; 14.5" x 6.7" (368.5 x 171.2 mm)
- Wire Rope Recommended 1/2" x 165' (12.7 mm x 50.3 m)
- Winch Weight 158.7 lbs (72 kg)
- Gross Weight 194 lbs (88 kg)
- Box Dimensions 28.1" x 16.3" x 12.2" (715 x 415 x 311 mm)
