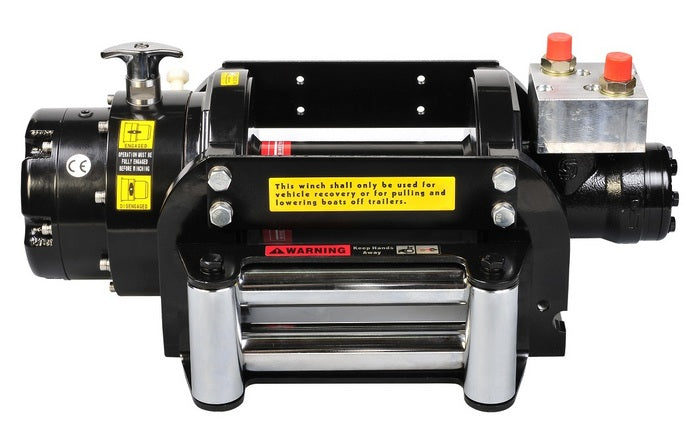

BADGER 8 STANDARD DRUM HYDRAULIC WINCH

BADGER 8 STANDARD DRUM HYDRAULIC WINCH

Regular price $1,280.00 USD
Regular price Sale price $1,280.00 USD
Sale Sold out

Powered by an onboard hydraulic pump or PTO.
Fast and variable recovery speeds for high speed working.
Efficient and constant operating high torque motor.
2 stage planetary gear train for greater pulling force.
Turn clutch by ergonomic T-handle for rapid wire rope payout.
Drag brake and over-center valve providing complete braking.
EN 14492-1 supported: 10:1 D/d ratio and 2:1 wire rope strength allow severe duty vehicles and commercial recovery.
Meets SAE J706 revised AUG2003, CE Machinery Directive 2006/42/EC, and EN 14492-1:2006 Power Driven Winches.
Specifications
Line Speed (at 1st layer of rope) 49 fpm at 15.9 g/min (15 mpm at 60 l/min)
Operation Pressure 2,175 psi / 150 bar
Max Oil Flow 15.9 g/min (60 l/min)
Hydraulic Motor 4.7 cu in (77.8 cc)
Gear Ratio 2-stage planetary gear 16:1
Winch Construction Aluminum die cast housings with steel drum
Clutch (Freespooling) Rotating ring gear
Brake Spring applied drag brake together with supplied over-center valve
Rotation of Winch Wire rope shall be under-wound orientation only

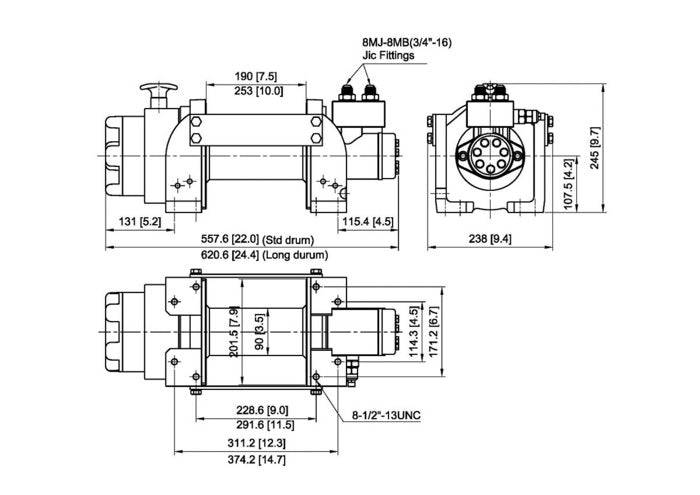

Drum Barrel Diameter 3.5 inches (90 mm)
Drum Flange Diameter 7.9 inches (201.5 mm)
Distance Between Flanges 7.5 inches (190 mm)
Mounting Bolt Pattern 9" x 6.7" (228.6 x 171.2 mm) ; 12.3" x 4.5" (311.2 x 114.3 mm)
Wire Rope Recommended 3/8" x 100' (9.5 mm x 30.5 m)
Winch Weight 78.1 lbs (35.5 kg)
Gross Weight 95.3 lbs (43.3 kg)
Box Dimensions 23.6" x 14.6" x 11.2" (600 x 370 x 285 mm)
