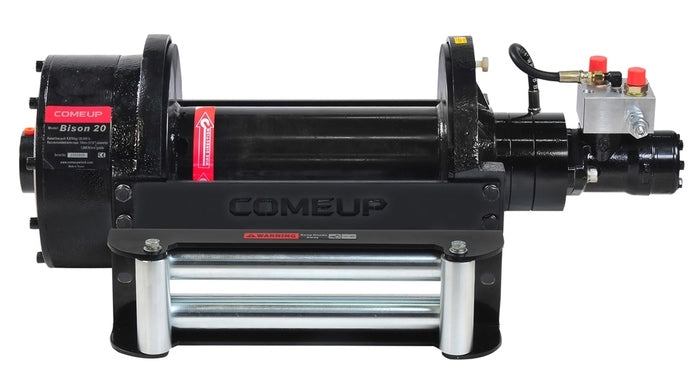

BISON 20 HYDRAULIC WINCH Long Drum

BISON 20 HYDRAULIC WINCH Long Drum

$5,780.00 USD
$5,780.00 USD
Sale Sold out

Part Number 682385



Line Pull and Rope Capacity

Layer of Wire Rope Pull by Layer,
kg / lb		 Total Rope on the Drum, m / ft Line Speed
14 mm rope 16 mm rope at 60 l/min (15.9 g/min ), mpm / fpm
1st 9,070 / 20,000 12 / 39 11 / 36 7.1 / 23
2nd 7,719 / 17,017 27 / 89 24 / 79 8.3 / 27
3rd 6,719 / 14,813 43 / 141 39 / 128 9.5 / 31
4th 5,948 / 13,113 62 / 203 55 / 180 10.8 / 35
5th 5,335 / 11,762 80 / 262 - 12 / 39





Specifications:

  • Rated Line Pull 20,000lb (9,070 kg) SAE J706 ratings
  • Line Speed (at 1st layer of rope) 23 fpm at 15.9 g/min (7.1 mpm at 60 l/min)

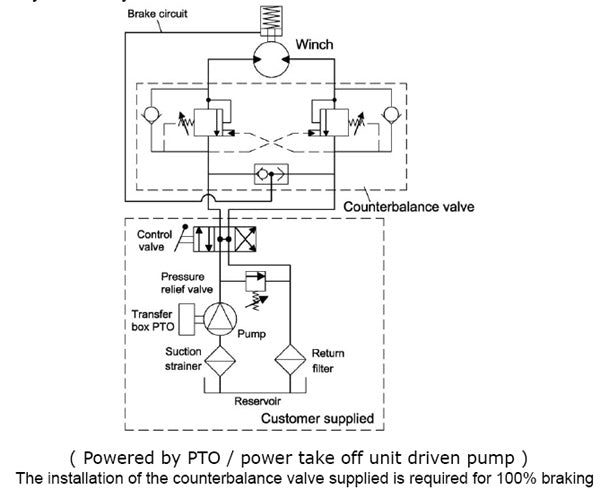

  • Operation Pressure 2,540 psi / 175 bar
  • Max Oil Flow 15.9 g/min (60 l/min)
  • Hydraulic Motor 9.5 cu in (155.7 cc)
  • Gear Ratio 2-stage planetary gear 30:1
  • Winch Construction Cast housings with steel drum
  • Clutch (Freespooling) Output shaft disengaged
  • Brake Multi-Disc Brake (MDB) patented
  • Rotation of Winch Wire rope shall be under-wound orientation only

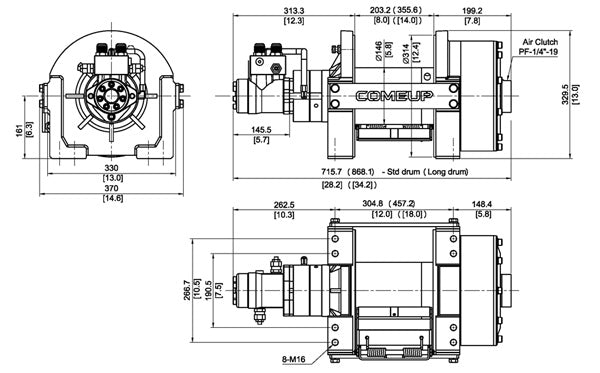

  • Drum Barrel Diameter 5.8" (146 mm)
  • Drum Flange Diameter 12.4" (314 mm)
  • Distance Between Flanges 14" (355.6 mm)
  • Mounting Bolt Pattern 7.5" x 18" (190.5 x 457.2 mm) ; 10.5" x 18" (266.7 x 457.2 mm)
  • Wire Rope Recommended 9/16" x 262' (14 mm x 80 m ) - 1,960 N/mm2 breaking strength of 30,742 lbf (137 kN) required for SAE J706 ratings
  • Winch Weight 331 lbs (150 kg)
  • Gross Weight 430 lbs (195 kg)
  • Box Dimensions 40.4" x 19.7" x 20.1" (1,025 x 500 x 510 mm)
