COMEUP USA

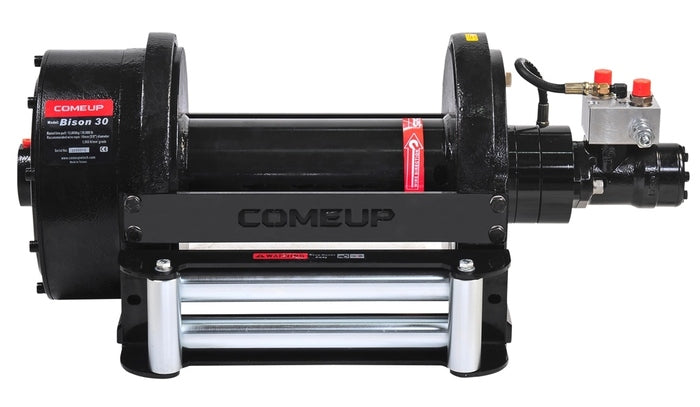

BISON 30 HYDRAULIC WINCH Long Drum
BISON 30 HYDRAULIC WINCH Long Drum
Regular price
$7,210.00 USD
Regular price
Sale price
$7,210.00 USD
Unit price
/
per
Couldn't load pickup availability
Part Number 683435
Line Pull and Rope Capacity:
| Layer of Wire Rope | Pull by Layer, kg / lb |
Total Rope on the Drum, m / ft | Line Speedat 60 l/min (15.9 g/min ), mpm / fpm |
| 1st | 13,600 / 30,000 | 11 / 36 | 5.0 / 16 |
| 2nd | 11,438 / 25,216 | 25 / 82 | 5.9 / 19 |
| 3rd | 9,864 / 21,745 | 40 / 131 | 6.9 / 23 |
| 4th | 8,670 / 19,115 | 58 / 190 | 7.8 / 26 |
| 5th | 7,735 / 17,052 | 75 / 246 | 8.8 / 29 |
Specifications:
- Rated Line Pull 30,000lb (13,600 kg) SAE J706 ratings
- Line Speed (at 1st layer of rope) 16 fpm at 15.9 g/min (5.0 mpm at 60 l/min)
- Operation Pressure 2,540 psi / 170 bar
- Max Oil Flow 15.9 g/min (60 l/min)
- Hydraulic Motor 9.5 cu in (155.7 cc)
- Gear Ratio 2-stage planetary gear 41:1
- Winch Construction Cast housings with steel drum
- Clutch (Freespooling) Output shaft disengaged
- Brake Multi-Disc Brake (MDB) patented
- Rotation of Winch Wire rope shall be under-wound orientation only

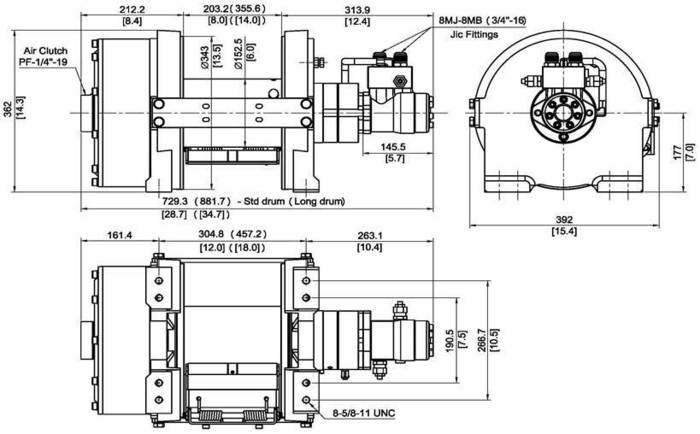

- Drum Barrel Diameter 6" (152.5 mm)
- Drum Flange Diameter 13.5" (343 mm)
- Distance Between Flanges 14" (355.6 mm)
- Mounting Bolt Pattern 7.5" x 18" (190.5 x 457.2 mm) ; 10.5" x 18" (266.7 x 457.2 mm)
- Wire Rope Recommended 5/8" x 246' (16 mm x 75 m ) - 1,960 N/mm2 breaking strength of 40,167 lbf (179 kN) required for SAE J706 ratings
- Winch Weight 434 lbs (197 kg)
- Gross Weight 518 lbs (235 kg)
- Box Dimensions 40.9" x 24.4" x 20.1" (1,040 x 620 x 510 mm)
