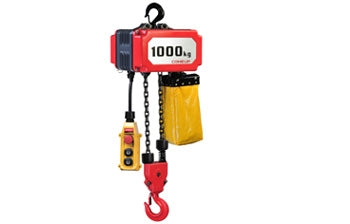

AC Chain Hoist - CK-1000 - 1 Ton, 9.8 ft lift, 110 volts

Part Number 441050

Permanent magnetic motor features constant output and low noise level.
Lightweight and compact designs are ideal for easy installation.
Dual brakes for double mechanical ratchet pawls and a motor dynamic brake provide slip free operation.
Safety slipping clutch prevents hook becoming trapped into the hoist in the “up” direction
Power cutoff switch prevents the overloading of the hoist
Tough aluminum die-cast housing provides massive structural durability.
Can operate on the standard domestic power supply and equip with industrial plug
A switch w/emergency stop comes as standard
A 360° bottom hook fitted with a self-locking latch has a bearing is capable of swiveling with the safe working load applied
Standard Compliance: CE Machinery Directive 2006/42/EC, CE EMC Directive 2004/108/EC, EN 14492-2 Power Driven hoists 2006, JIS B8815, ISO 4301-1 and ASME B30.7

Specifications:

• Lifting Load 2,200 lbs
• Lifting Height 9.8 ft
• Line Speed 10.5 ft/min
• Power Source 1 phase, 110V AC
• Motor Output 750w, 9.5A permanent magnetic
• Gear Ratio 70.2 :1
• Braking Double mechanical ratchet pawls and motor dynamic brake
• Duty Cycle 25% ED at 63% of rated load
• Load Chain Grade 80– Links 6.3 mm dia. x 19 mm long
• Control Pendant switch 19.7 ft w/emergency stop
• Hoist weight 42.6 lbs
• Gross weight 70.6 lbs
• Box dimension 15" x 16.15" x 13.6"
