COMEUP USA

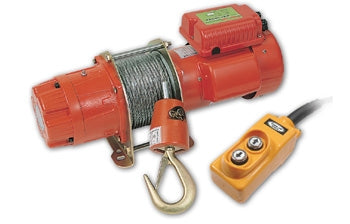

AC Hoist - CP200 115V - 520 lbs.

AC Hoist - CP200 115V - 520 lbs.

Regular price $548.99 USD
Regular price Sale price $548.99 USD
Sale Sold out

Part Number 152520



Lifting Capacity, Lifting Speed and Rope Capacity:

Layer of Wire rope Lifting Capacity, kg Lifting Speed, m / min Total Rope on the Drum, m
1st 296 10 5.4
2nd 264 11.3 11.5
3rd 239 12.5 18.3
4th 218 13.8 25.7
5th 200 15 30



Pulling Load Capacity for Various Inclines in kg:

Model Level Surface Gradient % inclines / angle in degrees
10% 6° 20% 11° 40% 22° 60% 31° 80% 39°
CP-200 1,670 890 650 410 320 280




Specifications:

  • Lifting Capacity Up to 520 lbs
  • Line Speed at 1st Layer 32.8 ft/min
  • Line Speed at Top Layer 49.2 ft/min
  • Power Source 1 phase, 115V
  • Motor 0.6 kw x 4 poles induction brake motor
  • Gear Ratio 43:1
  • Maximum Lifting Height 29 m
  • Braking Method Electromagnetic
  • Wire Rope 6 mm x 30 m

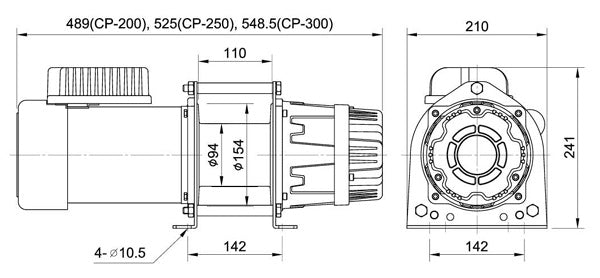

  • Drum Length 110 mm
  • Drum Dia. 94 mm
  • Drum Flange Dia. 154 mm
  • Mounting Bolt Pattern 142 mm x 142 mm
  • Net Weight 32 kg
  • Gross Weight 34 kg
  • Winch Dimension (L x D x H) 489 x 210 x 241 mm
  • Package Dimension (L x D x H) 610 x 286 x 285 mm
