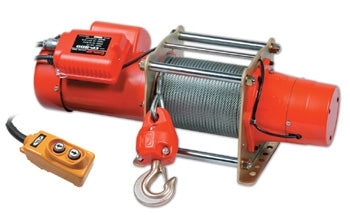

AC Hoist - CP500 230V - 1,330 lbs
AC Hoist - CP500 230V - 1,330 lbs
Regular price
$1,136.99 USD
Regular price
Sale price
$1,136.99 USD
Unit price
/
per
Part Number 153025
Lifting Capacity, Lifting Speed and Rope Capacity:
Layer of Wire rope | Lifting Capacity, kg | Lifting Speed, m / min | Total Rope on the Drum, m |
1st | 757 | 10 | 10 |
2nd | 671 | 11.6 | 22 |
3rd | 602 | 12.9 | 35 |
4th | 546 | 14.2 | 50 |
5th | 500 | 15 | 60 |
Pulling Load Capacity for Various Inclines in kg :
Model | Level Surface | Gradient % inclines / angle in degrees | ||||
10% 6° | 20% 11° | 40% 22° | 60% 31° | 80% 39° | ||
CP-500 | 4,170 | 2,230 | 1,620 | 1,040 | 810 | 690 |
Specifications:
- Lifting Capacity Up to 1,330 lbs
- Line Speed at 1st Layer 32.8 ft/min
- Line Speed at Top Layer 49.2 ft/min
- Power Source 1 phase, 230V AC
- Motor 1.8 kw x 4 poles induction brake motor
- Gear Ratio 48:1
- Maximum Lifting Height 58 m
- Braking Methods Electromagnetic
- Wire Rope 7 mm x 60 m
- Drum Length 220 mm
- Drum Dia. 102 mm
- Drum Flange Dia. 180 mm
- Mounting Bolt Pattern 265 x 156 mm
- Net Weight 55 kg
- Gross Weight 57 kg

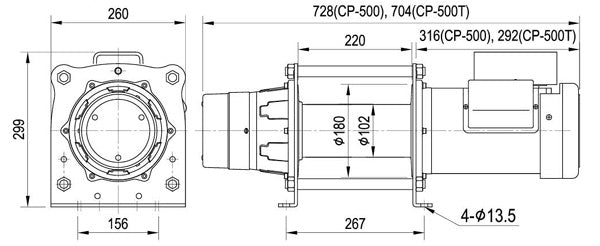

- Hoist Dimension (L x D x H) 694 x 260 x 299 mm
- Package Dimension (L x D x H) 730 x 272 x 350 mm
