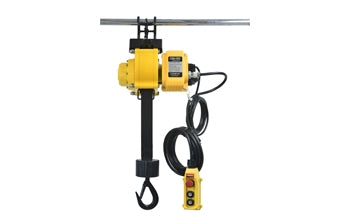

AC Strap Hoist - CSH130 - 440 Lb. Capacity, 16.4ft. Lift, 110 Volts

AC Strap Hoist - CSH130 - 440 Lb. Capacity, 16.4ft. Lift, 110 Volts

Regular price $676.99 USD
Regular price Sale price $676.99 USD
Sale Sold out

Part Number 471420

Light Weight and Compact Design. Allow easy installation.
High Strength Strap offers smoother winding. Eliminates load rotation problem with wire rope or chain. Straps do not chip or spark.
Equipped with an upper limit switch to prevent over lifting.
Suitable for workplace requires stricter levels of cleanliness.
Triple brakes design provide slip-free operation
Permanent magnetic motor features constant output and low noise level.
Can operate on the standard domestic power supply and equip with industrial plug
Standard Compliance: CE Machinery Directive 2006/42/EC, CE EMC Directive 2014/30/EU , Safety of machinery EN 60204-32:2008


  • Lifting Capacity Up to 400 lbs
  • Line Speed at 1st Layer 25.9 ft/min
  • Line Speed at Top Layer 39 ft/min
  • Power Source 1 phase, 110V AC
  • Motor Output 300W
  • Gear Ratio 112.7:1
  • Maximum Lifting Height 16.4 ft
  • Braking Spring applied drag brake + Drag brake + Motor Dynamic brake
  • Strap 2”x0.05”x18'
  • Drum Ø3.5” x Ø5.5” x 2.1”
  • Control 16.4ft (Emergency Stop Button)
  • Protection Upper Limit Switch
  • Hoist weight 35.3 lbs
  • Gross Weight 42.2 lbs
  • Box dimension 17.8” x 13” x 14”
