COMEUP USA

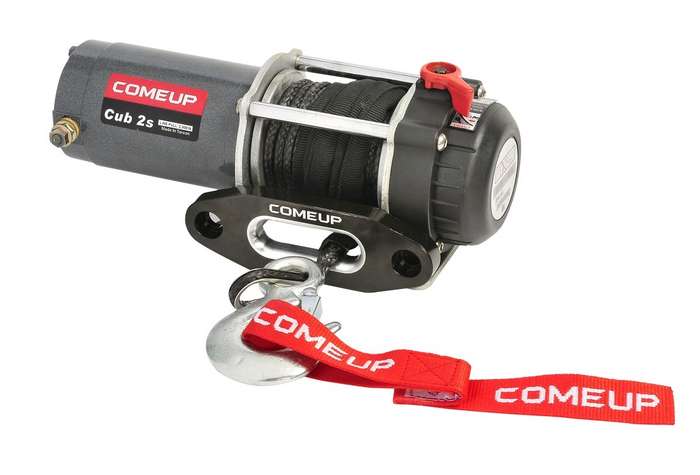

CUB 2s, 12V WINCH
CUB 2s, 12V WINCH
Regular price
$293.00 USD
Regular price
$320.00 USD
Sale price
$293.00 USD
Unit price
/
per
Couldn't load pickup availability
Part Number 122390
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, kg / lb |
Line Speed, mpm / fpm |
Amp. Draw, A |
| No load | 6.1 / 20.0 | 20 |
| 302 / 666 | 4.6 / 15.1 | 50 |
| 605 / 1,334 | 3.1 / 10.2 | 100 |
| 907 / 2,000 | 2.0 / 6.6 | 150 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
| 1st | 907 / 2,000 | 2.4 / 7.9 |
| 2nd | 762 / 1,680 | 5.3 / 17.4 |
| 3rd | 657 / 1,448 | 8.6 / 28.2 |
| 4th | 577 / 1,272 | 12.4 / 40.7 |
| 5th | 515 / 1,135 | 15.2 / 50.0 |
Specifications
- Rated Line Pull 2,000 lbs. (907 kg) single line
- Motor 600 w / 0.8 hp 12V permanent magnet
- Gear Ratio 3-Stage Planetary 103:1
- Clutch (freespooling) Cam activated
- Brake Mechanical & Dynamic
- Winch Construction Aluminum Die Cast Drum and Strong Steel Housings

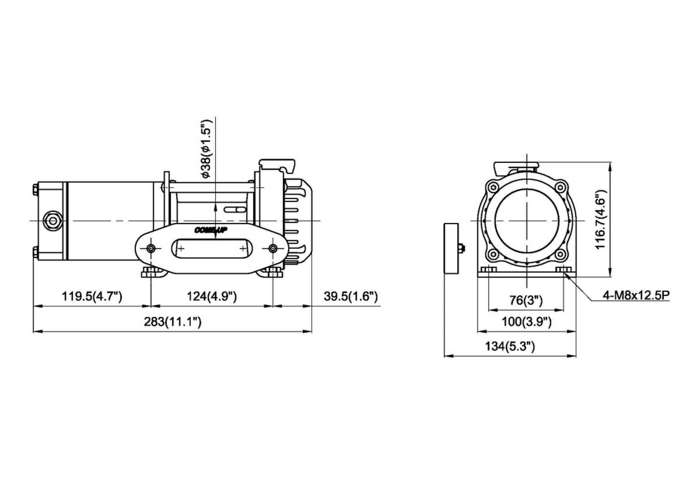

- Drum Size 1.5" x 3" (38 x 75 mm)
- Control Handlebar rocker switch
- Rope Type Synthetic Rope SK-75
- Rope Size 5/32" x 50' (4.0 mm x 15.2 m)
- Mounting Bolt Pattern 3"� x 4.9"� (76 x 124 mm)
- Winch Weight 13.2 lbs (6 kgs)
- Winch Weight 13.2 lbs (6 kg)
- Gross Weight 19.8 lbs (9 kg)
- Box Dimensions 11.7" x 8.8" x 5.5" (296 x 223 x 140 mm)
