COMEUP USA

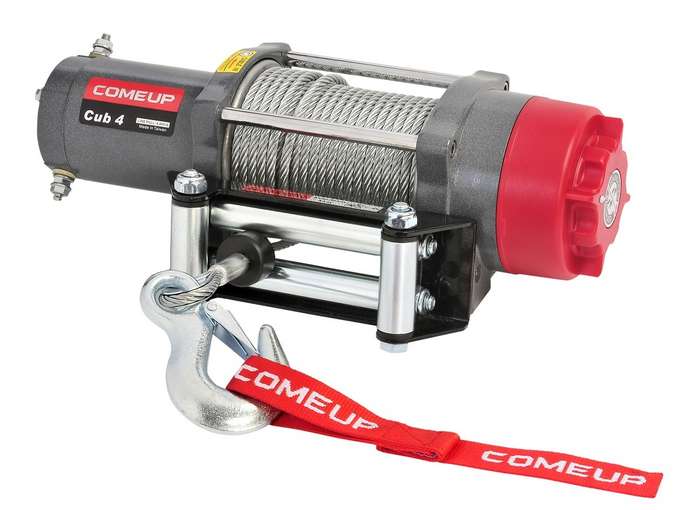

CUB 4, 12V WINCH
CUB 4, 12V WINCH
Regular price
$393.00 USD
Regular price
$430.00 USD
Sale price
$393.00 USD
Unit price
/
per
Couldn't load pickup availability
Part Number 123922
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, kg / lb |
Line Speed, mpm / fpm |
Amp. Draw, A |
| No load | 4.6 / 15.1 | 15 |
| 454 / 1,000 | 3.4 / 11.2 | 60 |
| 907 / 2,000 | 2.9 / 9.5 | 120 |
| 1,361 / 3,000 | 2.4 / 7.9 | 180 |
| 1,814 / 4,000 | 2.0 / 6.6 | 230 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
| 1st | 1,814 / 4,000 | 4.0 / 13.2 |
| 2nd | 1,535 / 3,385 | 8.8 / 28.8 |
| 3rd | 1,331 / 2,933 | 14.2 / 46.7 |
| 4th | 1,174 / 2,588 | 15.2 / 50 |
Specifications:
- Rated Line Pull 4,000 lbs (1,814 kg) single line
- Motor 800 w / 1.0 hp 12V permanent magnet
- Gear Ratio 3-Stage Planetary 191:1
- Clutch (freespooling) Sliding pin and ring gear
- Brake Mechanical & Dynamic
- Winch Construction Aluminum Die Cast Housings and Drum
- Drum Size 2.2” x 4.7” (55 x 119 mm)
- Control Handlebar rocker switch
- Rope Type Galvanized aircraft A7 x 19
- Rope Size 7/32” x 50' (5.5 mm x 15.2 m)

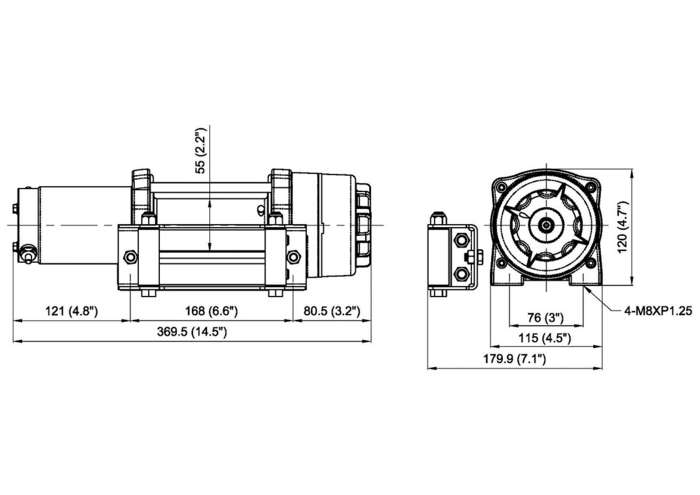

- Mounting Bolt Pattern 3” x 6.6” (76 x 168 mm)
- Winch Weight 19.6 lbs (8.9 kg)
- Gross Weight 28.9 lbs (13.1 kg)
- Box Dimensions 15.0” x 14.3” x 5.7” (380 x 362 x 144 mm)
