COMEUP USA

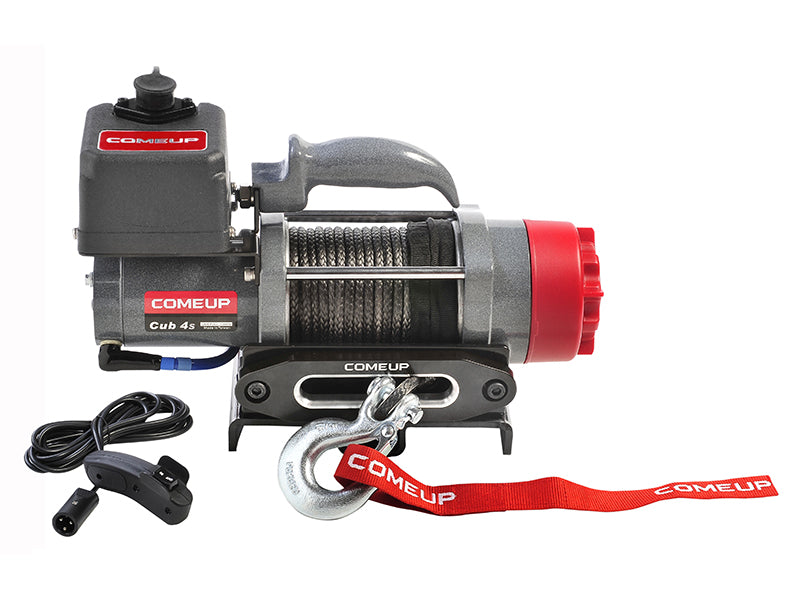

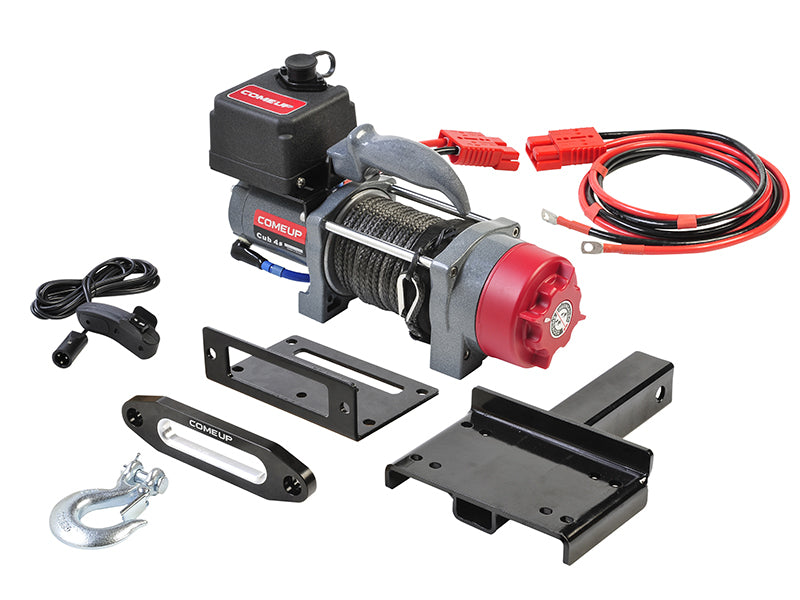

CUB 4s Carry On

CUB 4s Carry On

Regular price $613.00 USD
Regular price $670.00 USD Sale price $613.00 USD
Sale Sold out

Part Number 123933



Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull,
kg / lb
Line Speed,
mpm / fpm
Amp. Draw,  A
No load 4.6 / 15.1 15
454 / 1,000 3.4 / 11.2 60
907 / 2,000 2.9 / 9.5 120
1,361 / 3,000 2.4 / 7.9 180
1,814 / 4,000 2.0 / 6.6 230



Line Pull and Rope Capacity:

Layer of Rope Pull by layer, kg / lb Total Rope on the Drum, m / ft
1st 1,814 / 4,000 4 / 13.2
2nd 1,535 / 3,385 8.8 / 28.8
3rd 1,331 / 2,933 14.2 / 46.7
4th 1,174 / 2,588 15.2 / 50



Specifications

  • Rated Line Pull 4,000 lb (1,814 kg) single line
  • Motor 1.0 hp / 800 w 12V, permanent magnet
  • Gear Ratio 3-stage planetary 191:1
  • Clutch (freespooling) Sliding pin and ring gear
  • Brake Mechanical spring applied and permanent magnet motor dynamic brakes
  • Winch construction Aluminum die cast housings with steel drum

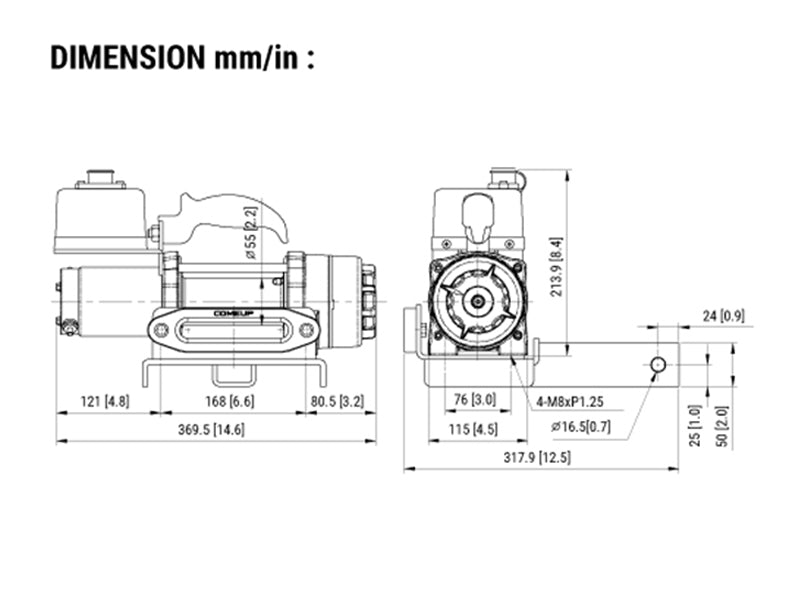

  • Drum size 2.2" x 4" x 4.7" (55 x 104 x 119 mm)
  • Remote Control Remote control w / 9.8' cord
  • Rope Type Synthetic rope SK-75
  • Rope Size 7/32" x 50' (5.5 mm x 15.2 m)
  • Mounting Bolt Pattern 3" x 6.6" (76 x 165 mm)
  • Winch Weight 19 lb / 8.6kg
  • Box Dimension 16.1" x 5.9" x 13.6" (410 x 149 x 345 mm)
