COMEUP USA

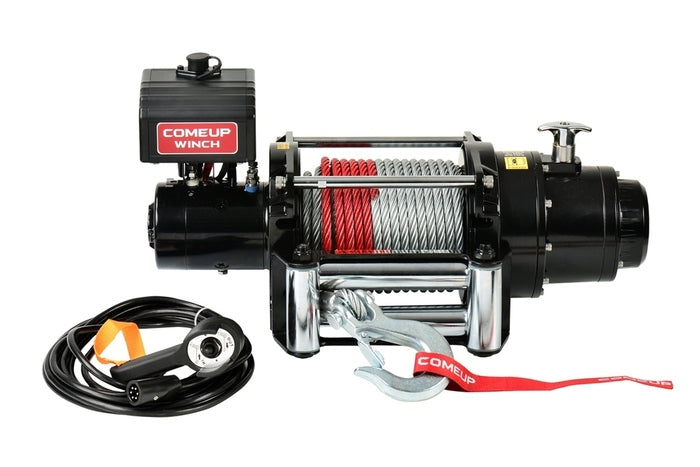

DV-12 24V
DV-12 24V
Regular price
$1,118.00 USD
Regular price
$1,220.00 USD
Sale price
$1,118.00 USD
Unit price
/
per
Couldn't load pickup availability
Part Number 857233
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, kg / lb |
Line Speed, mpm / fpm |
Amp. Draw, A |
| No load | 8.3 / 27 | 50 |
| 1,814 / 4,000 | 2.6 / 8.6 | 100 |
| 3,629 / 8,000 | 1.7 / 5.8 | 190 |
| 4,536 / 10,000 | 1.4 / 4.4 | 230 |
| 5,443 / 12,000 | 1.2 / 4.0 | 290 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
| 1st | 5,443 / 12,000 | 6.6 / 21.5 |
| 2nd | 4,563 / 10,060 | 14.4 / 47.2 |
| 3rd | 3,928 / 8,659 | 23.5 / 77 |
| 4th | 3,448 / 7,601 | 33.8 / 110.9 |
| 5th | 3,072 / 6,774 | 38 / 125 |
Specifications:
- Rated Line Pull 12,000 lbs (5,443 kg) single line pull
- Motor 3.6 hp / 2,690 w 24V Series Wound
- Gear Ratio 3-Stage Planetary 261:1
- Clutch (freespooling) Rotating Ring Gear
- Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
- Winch Construction Aluminum Die Cast Housing with Steel Drum
- Drum Size 3.5"� x 8.1"� (89 x 206 mm)
- Control Waterproof remote with thermometric indicator LED w/17' (5 m) cord
- Rope Type Galvanized aircraft A7 x 19
- Rope Size 3/8"� x 125' (9.5 mm x 38 m)

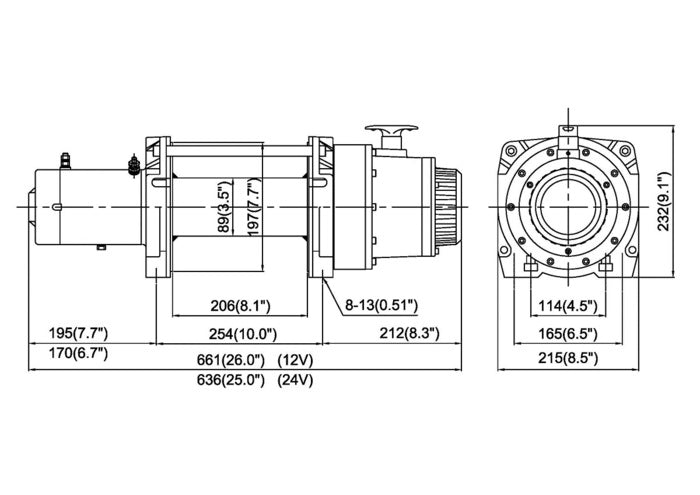

- Mounting Bolt Pattern 10"� x 4.5"� (254 x 114 mm), 10" x 6.5" (254 x 165 mm)
- Winch Weight 121 lbs (55 kg)
- Gross Weight 147.7 lbs (67 kg)
- Box Dimensions 26.8"� x 8.2"� x 17.8"� (682 x 209 x 453 mm)
