COMEUP USA

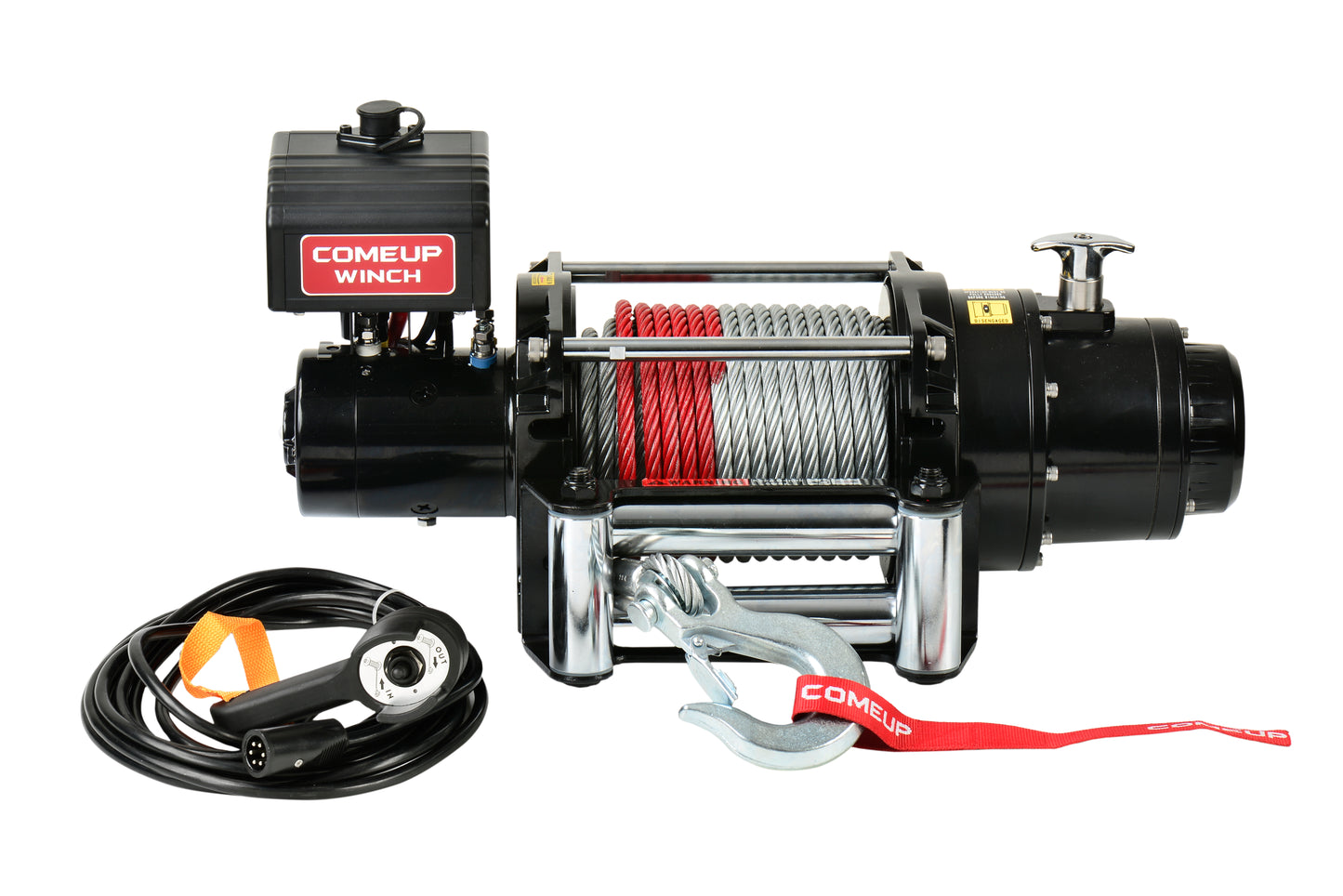

DV-15 24V
DV-15 24V
Regular price
$1,363.00 USD
Regular price
$1,490.00 USD
Sale price
$1,363.00 USD
Unit price
/
per
Couldn't load pickup availability
Part Number 857436
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
|
Line Pull, kg / lb |
Line Speed, mpm / fpm |
Amp. Draw, A |
| No load | 6.9 / 22.0 | 50 |
| 1,814 / 4,000 | 1.6 / 5.4 | 90 |
| 3,629 / 8,000 | 1.2 / 3.8 | 190 |
| 4,536 / 10,000 | 1.0 / 3.3 | 220 |
| 5,443 / 12,000 | 0.9 / 2.9 | 260 |
| 6,804 / 15,000 | 0.8 / 2.5 | 340 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
| 1st | 6,804 / 15,000 | 5.7 / 18.6 |
| 2nd | 5,569 / 12,277 | 12.6 /41.4 |
| 3rd | 4,713 / 10,391 | 20.8 / 68.3 |
| 4th | 4,086 / 9,007 | 27 / 89 |
Specifications:
- Rated Line Pull 15,000 lbs (6,804 kg) single line
- Motor 3.6 hp / 2,690 w 24V Series Wound
- Gear Ratio 3-Stage Planetary 315:1
- Clutch (freespooling) Rotating Ring Gear
- Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
- Winch Construction Aluminum Die Cast Housing with Steel Drum

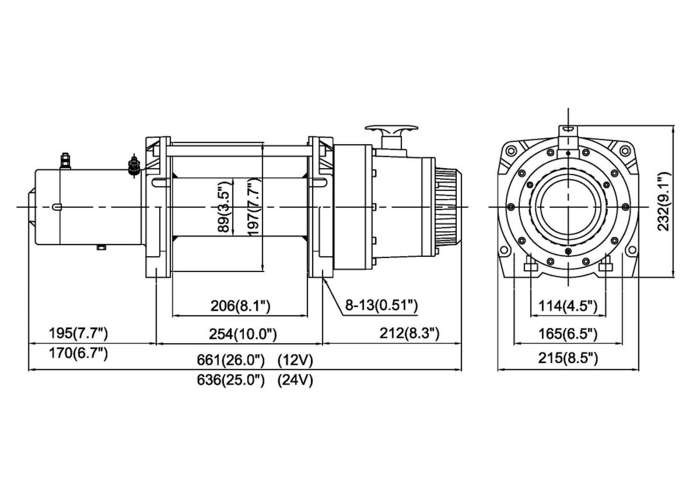

- Drum Size 3.5” x 8.1” (89 x 206 mm)
- Control Waterproof remote with thermometric indicator LED w/17' (5 m) cord
- Rope Type 6 x 29 – IWRC
- Rope Size 7/16” x 89' (11.1 mm x 27 m)

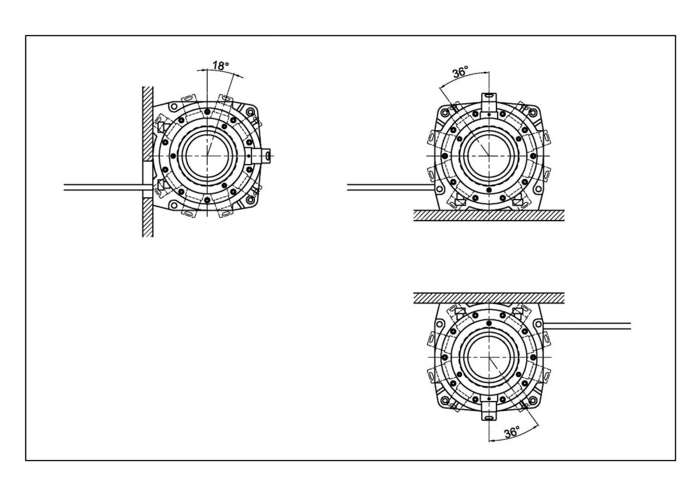

- Mounting Bolt Pattern 10” x 4.5” (254 x 114 mm), 10” x 6.5” (254 x 165 mm)
- Winch Weight 125.4 lbs (57 kg)
- Gross Weight 152 lbs (69 kg)
- Box Dimensions 27.3” x 10.4” x 16.5” (695 x 265 x 420 mm)
