COMEUP USA

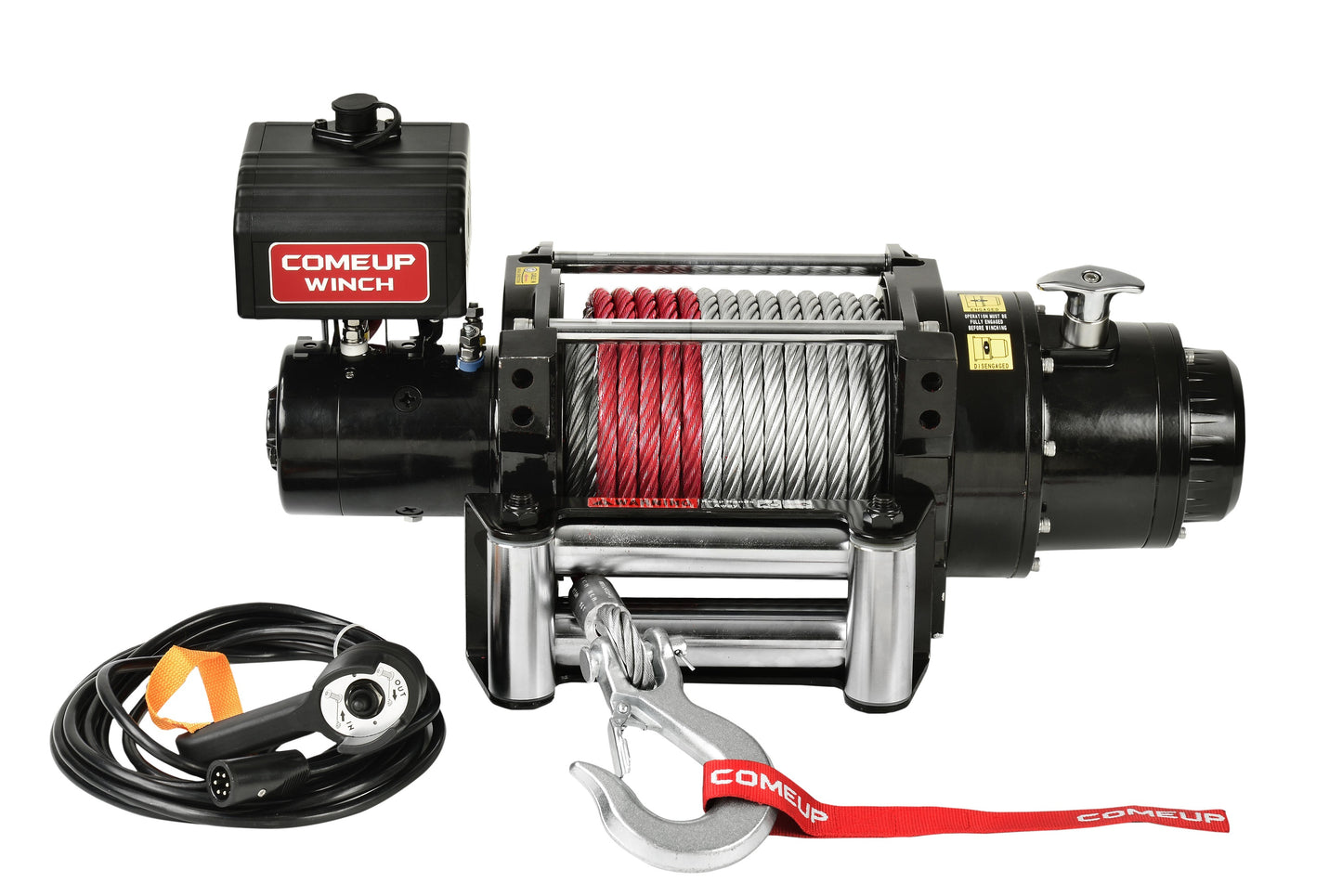

DV-18 12V
DV-18 12V
Regular price
$1,613.00 USD
Regular price
$1,760.00 USD
Sale price
$1,613.00 USD
Unit price
/
per
Couldn't load pickup availability
Part Number 851840
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
|
Line Pull, kg / lb |
Line Speed, mpm / fpm |
Amp. Draw, A |
| No load | 8.6 / 28.2 | 35 |
| 1,814 / 4,000 | 4.0 / 13.1 | 115 |
| 3,629 / 8,000 | 3.6 / 12.0 | 200 |
| 4,536 / 10,000 | 3.2 / 10.6 | 230 |
| 5,443 / 12,000 | 2.8 / 9.3 | 260 |
| 6,804 / 15,000 | 2.3 / 7.5 | 320 |
| 8,181 / 18,000 | 1.0 / 3.3 | 350 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
| 1st | 8,181 / 18,000 | 4.7 / 15.4 |
| 2nd | 6,546 / 14,431 | 10.5 / 34.4 |
| 3rd | 5,456 / 12,028 | 17.5 / 57.4 |
| 4th | 4,677 / 10,311 | 25.0 / 82.0 |
Specifications:
- Rated Line Pull 18,000 lbs (8,181 kg) single line
- Motor 7.0 hp / 5,220 w 12V Series Wound
- Gear Ratio 3-Stage Planetary 315:1
- Clutch (freespooling) Rotating Ring Gear
- Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
- Winch Construction Aluminum Die Cast Housing with Steel Drum

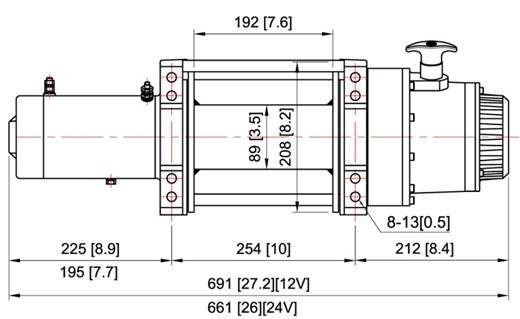

- Drum Size 3.5" x 7.6" (89 x 192 mm)
- Control Waterproof remote with thermometric indicator LED w/17' (5 m) cord
- Rope Type 6 x 29 - IWRC
- Rope Size 1/2" x 82' (12.7 mm x 25 m)

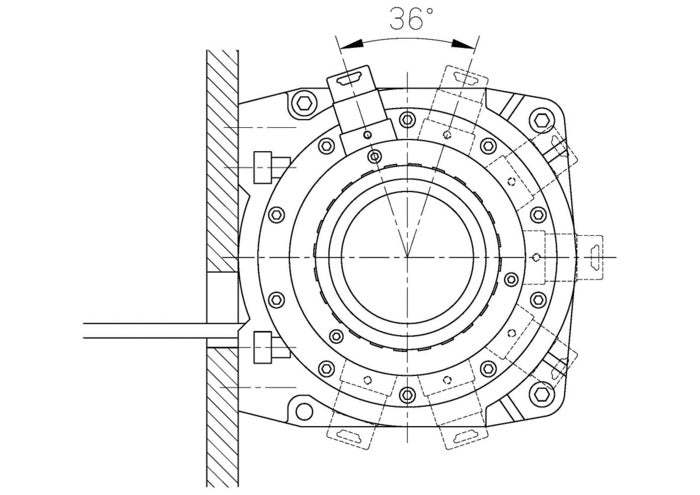

- Mounting Bolt Pattern 10" x 4.5" (254 x 114 mm), 10" x 6.5" (254 x 165 mm)
- Winch Weight 130 lbs (59 kg)
- Gross Weight 156.5 lbs (71 kg)
- Box Dimensions 27.3" x 10.4" x 16.5" (695 x 265 x 420 mm)
