COMEUP USA

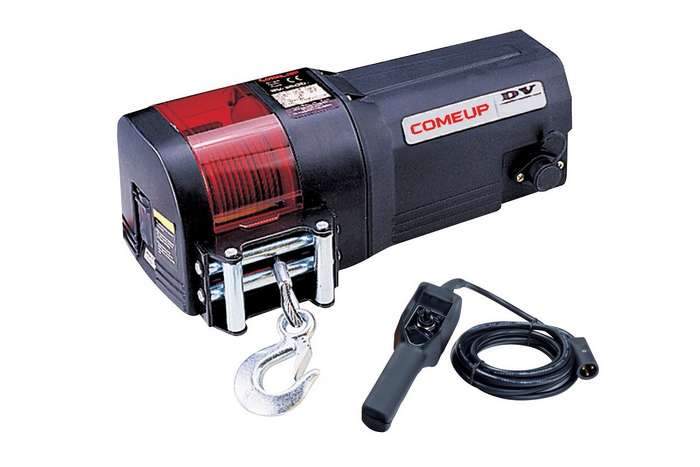

DV-4500i 12V
DV-4500i 12V
Regular price
$583.00 USD
Regular price
$637.00 USD
Sale price
$583.00 USD
Unit price
/
per
Couldn't load pickup availability
Part Number 644512
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, kg / lb |
Line Speed, mpm / fpm |
Amp. Draw, A |
| No load | 6.5 / 21.3 | 25 |
| 454 / 1,000 | 5.0 / 16.4 | 110 |
| 907 / 2,000 | 3.6 / 11.8 | 210 |
| 1,134 / 2,500 | 3.2 / 10.5 | 240 |
| 1,361 / 3,000 | 2.5 / 8.2 | 270 |
| 1,588 / 3,500 | 1.8 / 5.9 | 290 |
| 1,814 / 4,000 | 1.4 / 4.6 | 310 |
| 2,041 / 4,500 | 0.4 / 1.3 | 330 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
| 1st | 2,041 / 4,500 | 2.4 / 7.9 |
| 2nd | 1,688 / 3,722 | 5.3 / 17.4 |
| 3rd | 1,440 / 3,174 | 8.7 / 28.6 |
| 4th | 1,255 / 2,766 | 12.6 / 41.4 |
| 5th | 1,112 / 2,451 | 15.2 / 50 |
Specifications:
- Rated Line Pull 4,500 lbs (2,041 kg) single line
- Motor 1,200 w / 1.6 hp 12V permanent magnet
- Gear Ratio 3-Stage Planetary 170:1
- Clutch (freespooling) Sliding ramping
- Brake Automatic load-holding mechanical brake
- Drum Size 2.1” x 3.3” (54 x 83 mm)
- Control Handheld pendant switch remote control
- Rope Type Galvanized aircraft A7 x 19
- Rope Size 1/4” x 50' (6.3 mm x 15.2 m)

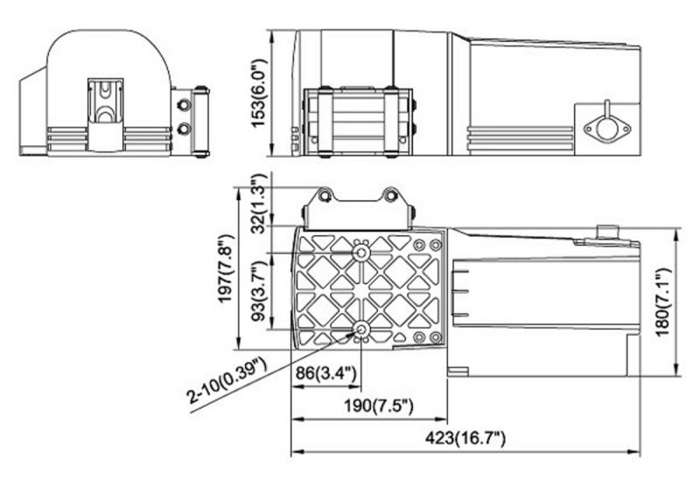

- Mounting Bolt Pattern 3.4” x 3.7” (86 x 93 mm)
- Winch Weight (including rope) 31.2 lbs (14.2 kg)
- Gross Weight 40.0 lbs (18.2 kg)
- Box Dimensions 18.2” x 10.7” x 7.3” (462 x 271 x 185 mm)
