COMEUP USA

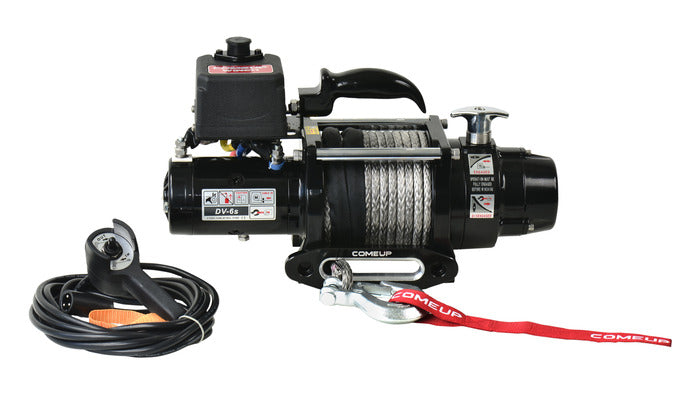

DV-6s 12V, Synthetic Rope
DV-6s 12V, Synthetic Rope
Regular price
$748.00 USD
Regular price
$820.00 USD
Sale price
$748.00 USD
Unit price
/
per
Couldn't load pickup availability
Product Number 854754
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
|
Line Pull, kg / lb |
Line Speed, mpm / fpm |
Amp. Draw, A |
| No load | 8.1 / 26.5 | 60 |
| 907 / 2,000 | 5.3 / 17.3 | 150 |
| 1,814 / 4,000 | 3.1 / 10.3 | 240 |
| 2,722 / 6,000 | 2.0 / 6.6 | 300 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
| 1st | 2,722 / 6,000 | 3.5 / 11.3 |
| 2nd | 2,266 / 4,995 | 7.7 / 25.2 |
| 3rd | 1,914 / 4,279 | 12.6 / 41.5 |
| 4th | 1,697 / 3,742 | 18.4 / 60.3 |
| 5th | 1,508 / 3,325 | 24.4 / 80 |
Specifications:
- Rated Line Pull 6,000 lb (2,722 kg) single line
- Motor 3.2 hp/ 2,390 w 12V, series wound
- Gear Ratio 3-stage planetary 216:1
- Clutch (freespooling) Rotating Ring Gear
- Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
- Winch construction Aluminum die cast housing with steel drum

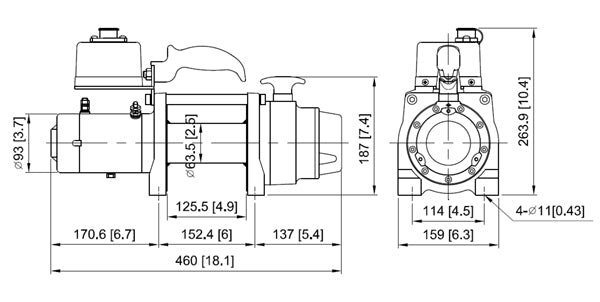

- Drum size 2.5" x 5.9" x 4.9" (63.5 x 151 x 125.5 mm)
- Remote Control Waterproof remote w/ 17" cord
- Rope Type Synthetic rope
- Rope Size 21/64" x 80' (8 mm x 24.4 m)
- Mounting Bolt Pattern 6" x 4.5" (152 x 114 mm)
- Winch Weight 41.9 lb (19 kg)
- Gross weight 47.6 lb (21.6 kg)
- Box Dimension 19.9" x 8.3" x 13.4"( 505 x 210 x 340 mm)
