COMEUP USA

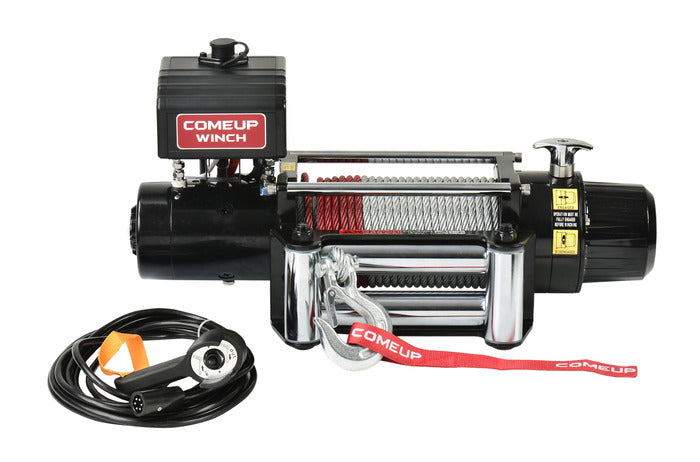

DV-9 24V
DV-9 24V
Regular price
$788.00 USD
Regular price
$860.00 USD
Sale price
$788.00 USD
Unit price
/
per
Couldn't load pickup availability
Product Number 856334
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
|
Line Pull, kg / lb |
Line Speed, mpm / fpm |
Amp. Draw, A |
| No load | 13 / 42.7 | 30 |
| 907 / 2,000 | 4.6 / 15.0 | 65 |
| 1,814 / 4,000 | 3.4 / 11.0 | 100 |
| 2,722 / 6,000 | 2.7 / 9.0 | 130 |
| 3,629 / 8,000 | 2.3 / 7.5 | 170 |
| 4,082 / 9,000 | 2.0 / 6.4 | 210 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
| 1st | 4,802 / 9,000 | 6.1 / 20.0 |
| 2nd | 3,316 / 7,310 | 13.6 / 44.7 |
| 3rd | 2,792 / 6,154 | 22.6 / 74.0 |
| 4th | 2,410 / 4,314 | 30.5 / 100 |
Specifications:
- Rated Line Pull 9,000 lbs (4,082 kg) single line
- Motor 2.6 hp / 1,940 w 24V Series Wound
- Gear Ratio 3-Stage Planetary 156:1
- Clutch (freespooling) Rotating Ring Gear
- Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
- Winch Construction Aluminum Die Cast Housing with Steel Drum

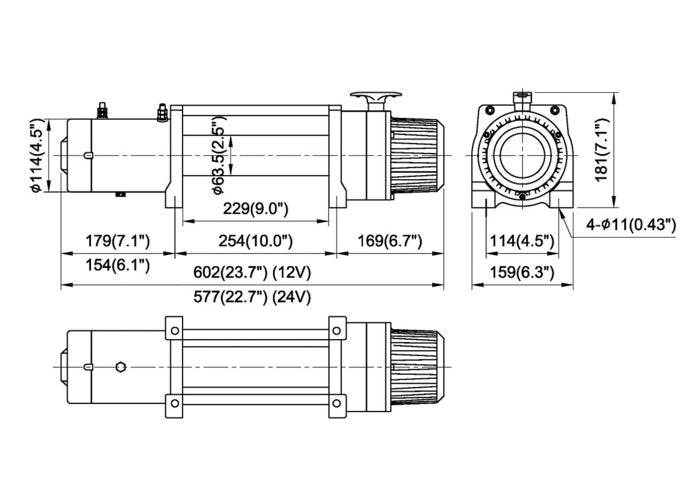

- Drum Size 2.5” x 9” (63.5 x 229 mm)
- Control Waterproof remote with thermometric indicator LED w/17' (5 m) cord
- Rope Type Galvanized aircraft A7 x 19
- Rope Size 21/64” x 100' (8.3 mm x 30.5 m)
- Mounting Bolt Pattern 10” x 4.5” (254 x 114 mm)
- Winch Weight 72.8 lbs (33.0 kg)
- Gross Weight 94.8 lbs (43 kg)
- Box Dimensions 25.6” x 7.7” x 16.3” (650 x 192 x 415 mm)
