COMEUP USA

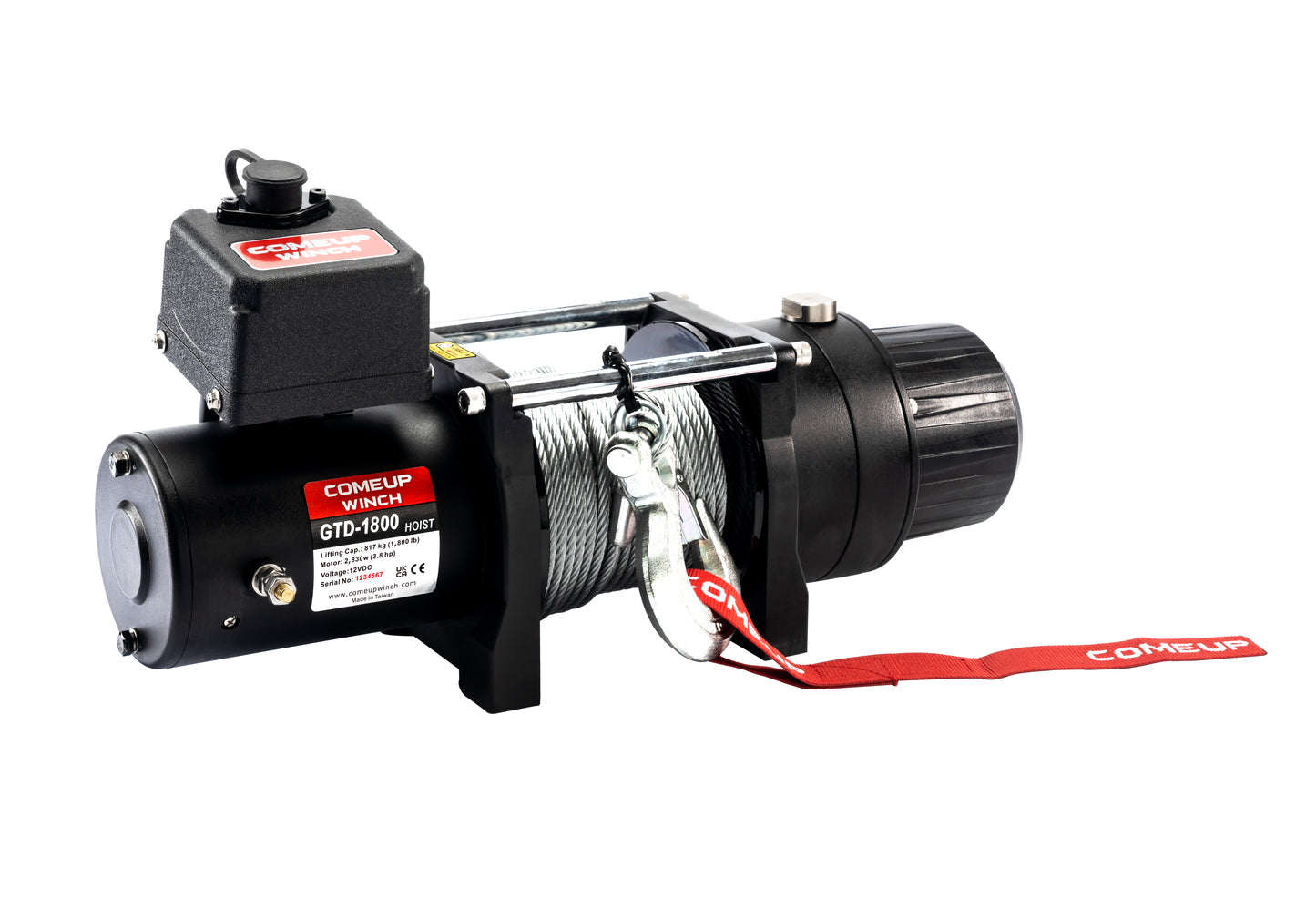

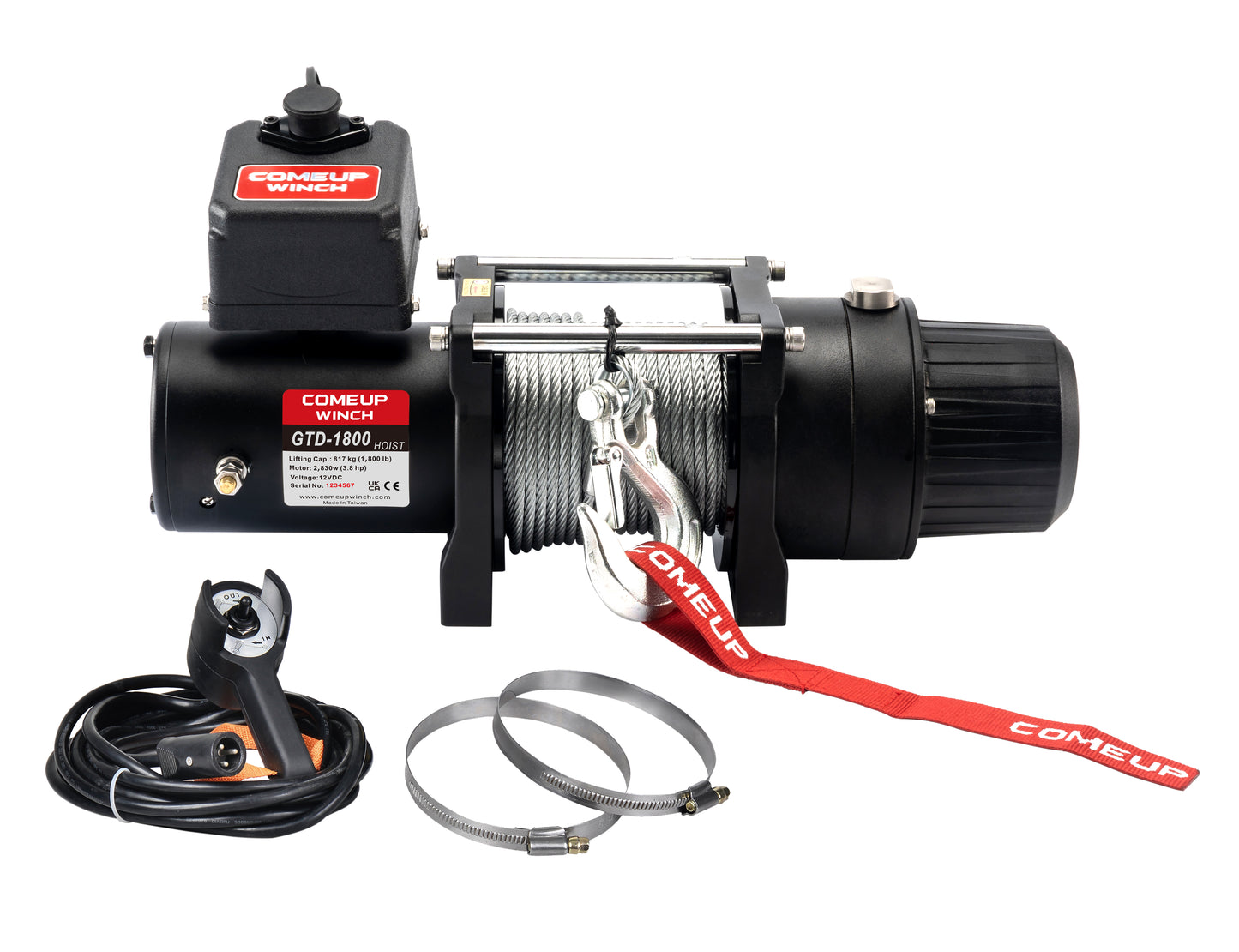

GTD-1800 12V DC Hoist
GTD-1800 12V DC Hoist
Regular price
$1,190.00 USD
Regular price
Sale price
$1,190.00 USD
Unit price
/
per
Couldn't load pickup availability
Product Number 752043
- 1,800 lbs Heavy Duty Hoist
- In compliance with standard of ASME B30.5 for D/d≥18 and rope safety factor ≥3.5
Line Speed and Amp. Draw ( 1st layer of wire rope on the drum ):
|
Line Pull, kg / lb |
Line Speed, mpm / fpm |
Amp. Draw, A | Percentage Duty Cycle, Min / 10 min |
| No load | 6.0 / 19.7 | 20 | cont. |
| 181 / 400 | 5.6 / 18.4 | 40 | 8.0 |
| 362 / 800 | 5.2 / 17.1 | 70 | 6.0 |
| 544 / 1,200 | 4.8 / 15.7 | 90 | 4.0 |
| 817 / 1,800 | 4.3 / 14.1 | 125 | 3.0 |
Line Pull and Rope Capacity:
| Layer of Wire Rope |
Pull by Layer kg/ lb |
Line Speed, mpm / fpm | Total Rope on the Drum m / ft |
| 1st | 817 / 1,800 | 5.0 / 16.4 | 6.4 / 21.0 |
| 2nd | 736 / 1,623 | 5.5 / 18.0 | 13.5 / 44.3 |
| 3rd | 670 / 1,477 | 6.0 / 19.7 | 21.3 / 70.0 |
Specifications:
- Rated Line Lift 1,800 lb (817 kg)
- Line speed ( 1st layer) 6.0 mpm / 19.7 fpm @No Load
- Line speed ( 1st layer) 4.3 mpm / 14.1 fpm @Full Load
- Motor 2,830 W / 3.8 hp 12V Permanent Magnet Motor
- Gear ratio 3-stage planetary 156:1
- Brake (outside the drum) Mechanical cone brake and permanent motor dynamic brakes together
- Winch construction Aluminum die cast housings with cast iron drum

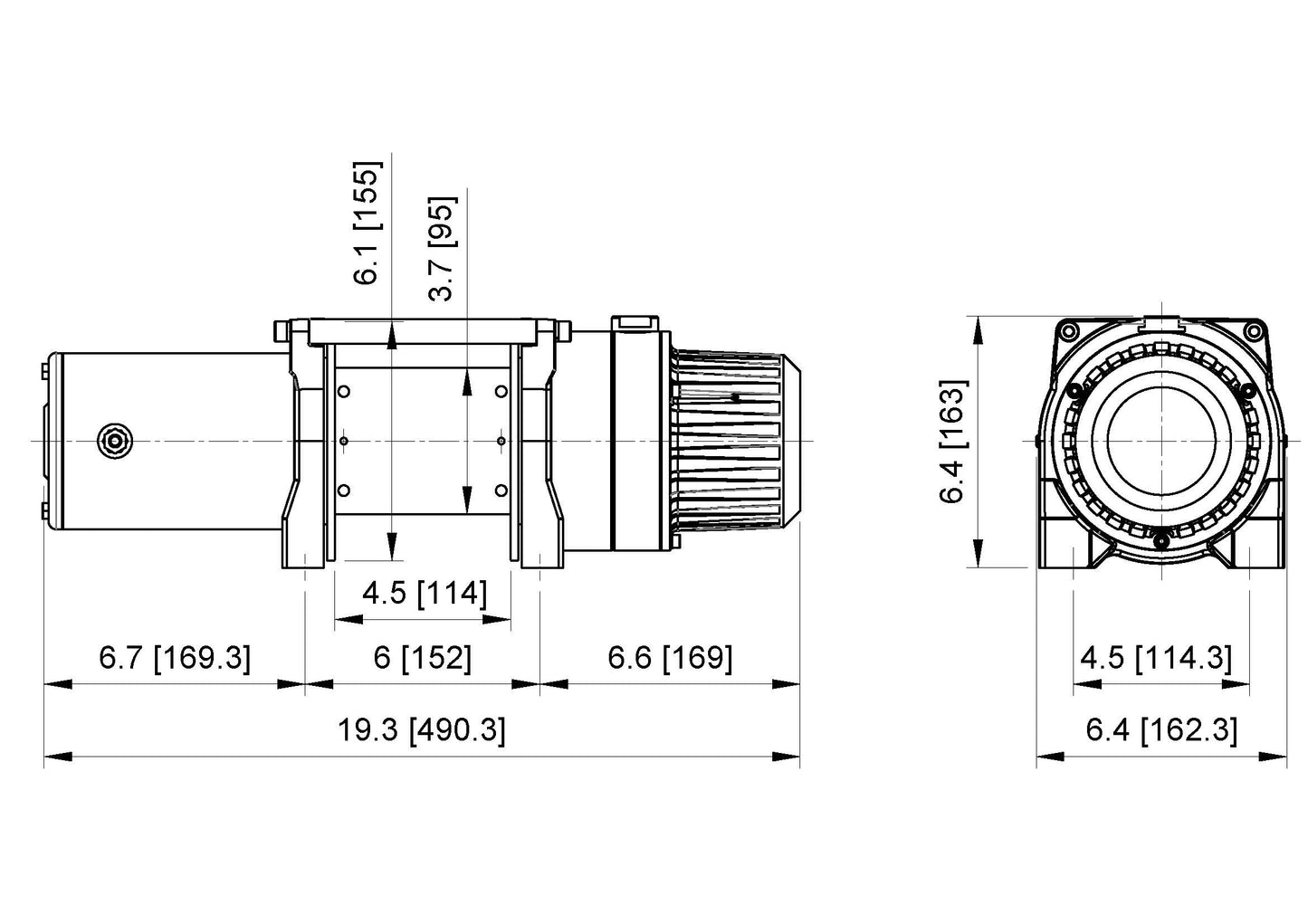

- Drum size 3.7" x 4.5" L (95 mm x 114 mm L)
- Rope Type Galvanized aircraft A7 x 19
- Rope Size 5.5 mm x 21.3 m (7/32" x 70')
- Mounting bolts pattern 114 x 152 mm (4.5" x 6")
