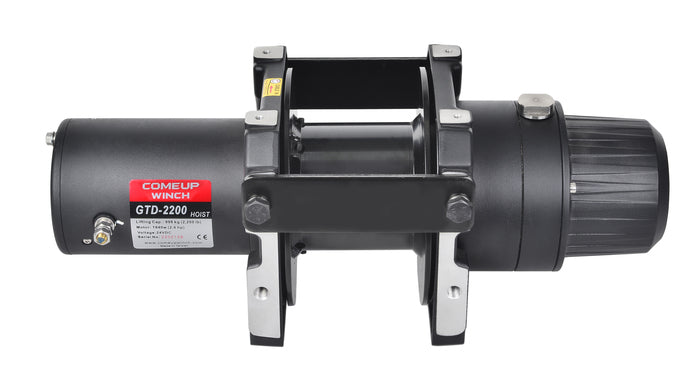

GTD-2200 12V Hoist Only

Provides an answer to the health and safety recommendations for manual lifting
High efficient low amp. draw and sealed permanent magnet motor.
Lightweight and compact design is ideal for easy installation.
Mechanical cone brake and permanent motor dynamic brakes together for safe, controlled load.
Full metal 3 stage planetary gear train for greater pulling force.
In compliance with standard of ANSI B30.5 for D/d?18 and rope safety factor ?3.5
Specifications
Rated Line Lift 2,200 lb (998 kg)
Line speed ( 1st layer) 4.5 mpm / 14.8 fpm @No Load
Line speed ( 1st layer) 3.5 mpm / 11.5 fpm @Full Load
Motor 2,830 W / 3.8 hp 12V Permanent Magnet Motor
Gear ratio 3-stage planetary 211:1
Brake (outside the drum) Mechanical cone brake and permanent motor dynamic brakes together
Winch construction Aluminum die cast housings with cast iron drum

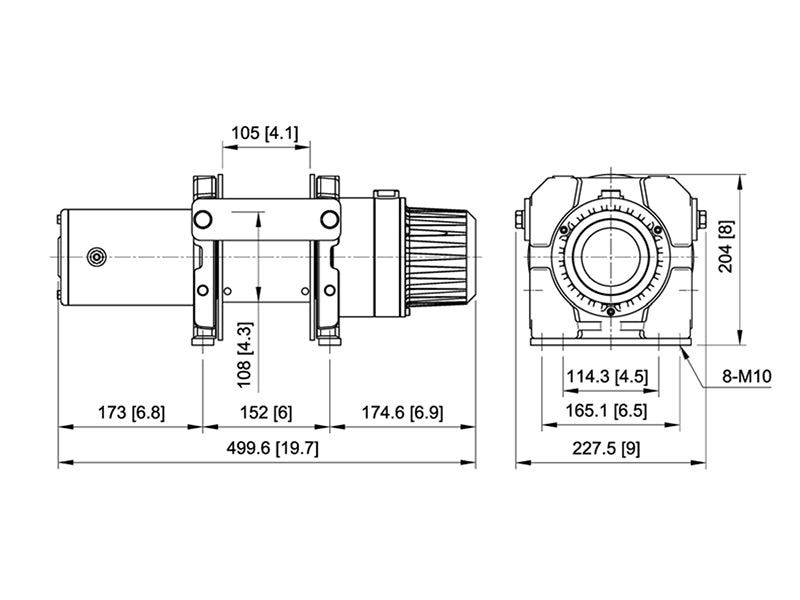

Drum size 4.3" x 4.1" (108 mm x 105 mm)
Recommended Rope Type Galvanized aircraft A7 x 19
Recommended Rope Size 4.8 mm x 18.3 m (3/16" x 60')
Mounting bolts pattern 114 x 101.6 mm (4.5" x 6"), 165.1 mm x 152 mm (6.5" x 6")
