COMEUP USA

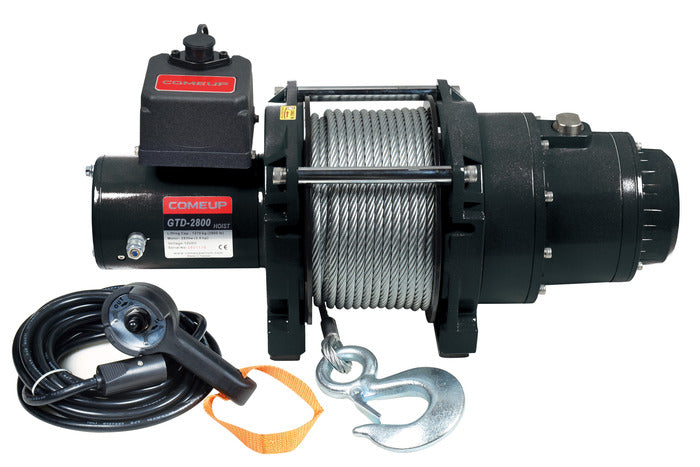

GTD-2800 12V 2,800lb DC Hoist
GTD-2800 12V 2,800lb DC Hoist
Regular price
$1,580.00 USD
Regular price
Sale price
$1,580.00 USD
Unit price
/
per
Couldn't load pickup availability
Product Number 753220
Line Speed and Amp. Draw ( 1st layer of wire rope on the drum ):
|
Line Pull, kg / lb |
Line Speed, mpm / fpm |
Amp. Draw, A | Percentage Duty Cycle, Min / 10 min |
| No load | 5.8 / 19 | 30 | cont. |
| 227 / 500 | 5.5 / 18 | 45 | 7.0 |
| 454 / 1,000 | 5.1 / 16.7 | 70 | 4.5 |
| 680 / 1,500 | 4.6 / 15.1 | 95 | 3.0 |
| 907 / 2,000 | 4.3 / 14.1 | 135 | 2.5 |
| 1,270 / 2,800 | 4.0 / 13.1 | 160 | 2.0 |
Line Pull and Rope Capacity:
| Layer of Wire Rope |
Pull by Layer kg/ lb |
Line Speed, mpm / fpm | Total Rope on the Drum m / ft |
| 1st | 1,270 / 2,800 | 4.0 / 13.1 | 6.3 / 20.7 |
| 2nd | 1,144 / 2,522 | 4.4 / 14.4 | 13.3 / 43.6 |
| 3rd | 1,040 / 2,292 | 4.8 / 15.7 | 21 / 68.6 |
| 4th | 954 / 2,103 | 5.3 / 17.4 | 28 / 92 |
Specifications:
- Rated Line Lift 2,800 lb (1,270 kg)
- Line speed at No Load (1st layer) 4.6 mpm / 15.1 fpm 25
- Line speed at Full Load (1st layer) 3.5 mpm / 11.5 fpm
- Motor 2,830 W / 3.8 hp 12V Permanent Magnet Motor
- Gear ratio 3-stage planetary 261:1
- Brake (outside the drum) Mechanical cone brake and permanent motor dynamic brakes together
- Winch construction Aluminum die cast housings with cast iron drum

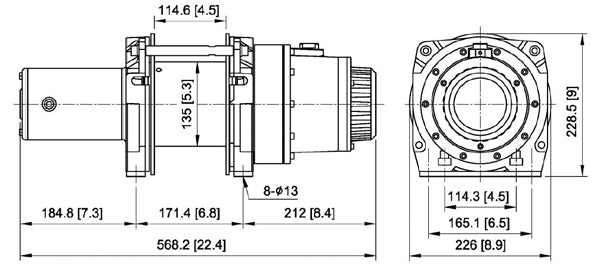

- Drum size 5.3” x 4.5” (135 x 114.6 mm)
- Control Remote control with 5 m (17") lead
- Rope Type Galvanized aircraft A7 x 19
- Rope Size 5/16” x 92’ (7.9 mm x 28 m)
- Mounting bolts pattern 4.5” x 6.8” (114.3 x 171.4 mm), 6.5” x 6.8” (165.1x171.4 mm)
