COMEUP USA

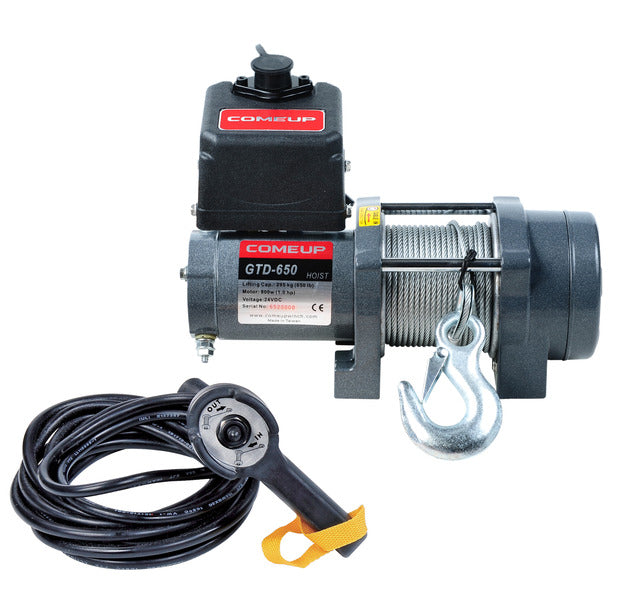

GTD-650 12V 650lb DC Hoist
GTD-650 12V 650lb DC Hoist
Regular price
$430.00 USD
Regular price
Sale price
$430.00 USD
Unit price
/
per
Couldn't load pickup availability
Product Number 750165
Line Speed and Amp. Draw ( 1st layer of wire rope on the drum ):
|
Line Pull, kg / lb |
Line Speed, mpm / fpm |
Amp. Draw, A | Percentage Duty Cycle, Min / 10 min |
| No load | 6.1 / 20.0 | 20 | 3.0 |
| 147 / 320 | 5.0 / 16.4 | 40 | 2.0 |
| 295 / 650 | 4.4 / 14.4 | 55 | 1.5 |
Line Pull and Rope Capacity:
| Layer of Wire Rope |
Pull by Layer kg/ lb |
Line Speed, mpm / fpm | Total Rope on the Drum m / ft |
| 1st | 295 / 650 | 4.4 / 14.4 | 4.1 / 13.5 |
| 2nd | 266 / 586 | 4.9 / 16 | 8.7 / 28.5 |
| 3rd | 241 / 531 | 5.4 / 17.7 | 13.8 / 45.3 |
| 4th | 221 / 487 | 5 9 / 19.4 | 18.3 / 60 |
Specifications:
- Rated Load 650 lb ( 295 kg )
- Motor 800 W, 12V Permanent magnet
- Line speed ( 1st layer) 4.3 mpm / 14.1 fpm @No Load
- Line speed ( 1st layer) 4.0 mpm / 13.1 fpm @Full Load
- Gear ratio 3-stage planetary 138.5:1
- Brake (outside the drum) Mechanical spring applied and permanent motor dynamic brakes together
- Winch construction Aluminum die cast housings and drum

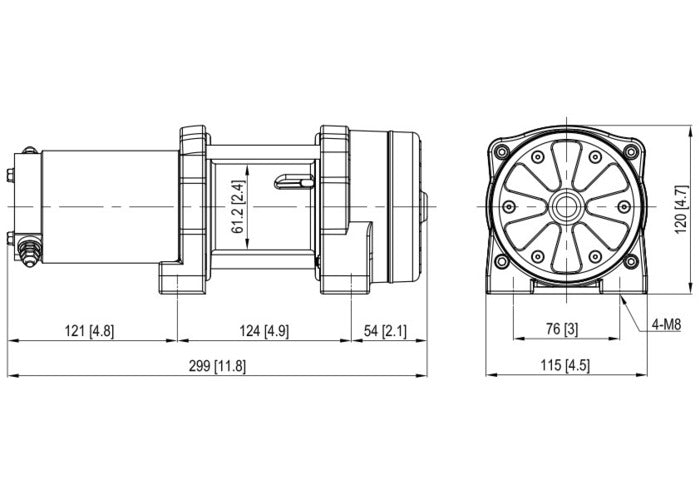

- Drum size 2.4" x 4.13" x 3.0" L ( 61.2 x 105 x 75mm L )
- Control Remote control with 17" (5 m) lead
- Rope Type Galvanized aircraft A7 x 19
- Rope Size 9/64" x 60' ( 3.6 mm x 18.3 m )
- Mounting bolts pattern 4.9" x 3" (124 x 76 mm )
