COMEUP USA

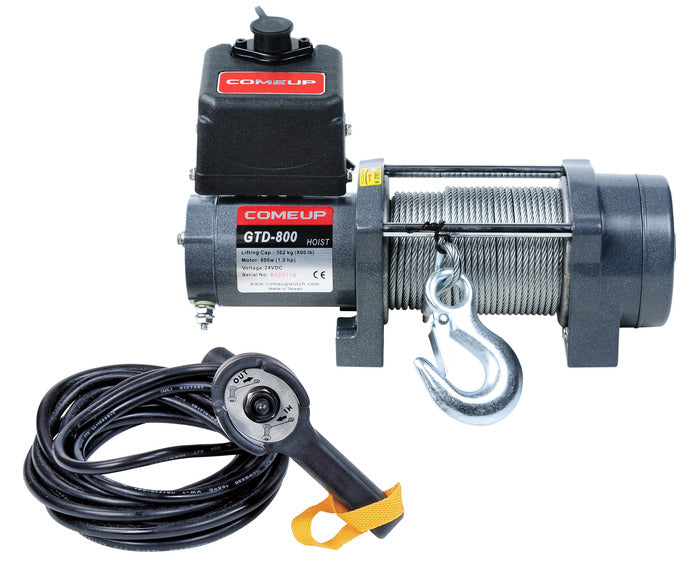

GTD-800 12V 800lb DC Hoist
GTD-800 12V 800lb DC Hoist
Regular price
$470.00 USD
Regular price
Sale price
$470.00 USD
Unit price
/
per
Couldn't load pickup availability
Product Number 750910
Line Speed and Amp. Draw ( 1st layer of wire rope on the drum ):
|
Line Pull, kg / lb |
Line Speed, mpm / fpm |
Amp. Draw, A | Percentage Duty Cycle, Min / 10 min |
| No load | 5.0 / 16.4 | 20 | 3.0 |
| 181 / 400 | 4.1 / 13.4 | 40 | 2.0 |
| 362 / 800 | 3.6 / 11.8 | 55 | 1.5 |
Line Pull and Rope Capacity:
| Layer of Wire Rope |
Pull by Layer kg/ lb |
Line Speed, mpm / fpm | Total Rope on the Drum m / ft |
| 1st | 362 / 800 | 3.6 / 11.8 | 6.6 / 21.7 |
| 2nd | 327 / 721 | 4.0 / 13.1 | 14.0 / 45.9 |
| 3rd | 297 / 655 | 4.4 / 14.4 | 18.3 / 60 |
Specifications:
- Rated Load 800lb ( 362kg )
- Motor 800 W, 12V Permanent magnet
- Line speed ( 1st layer) 3.6 mpm / 11.8 fpm @No Load
- Line speed ( 1st layer) 3.2 mpm / 10.5 fpm @Full Load
- Gear ratio 3-stage planetary 191:1
- Brake (outside the drum) Mechanical spring applied and permanent motor dynamic brakes together
- Winch construction Aluminum die cast housings and drum
- Drum size 2.7" x 4.1" x 4.7" L ( 68 x 105 x 119 L )
- Control Remote control with 17" (5 m) lead
- Rope Type Galvanized aircraft A7 x 19
- Rope Size 5/32" x 60' (4.0 mm x 18.3 m )

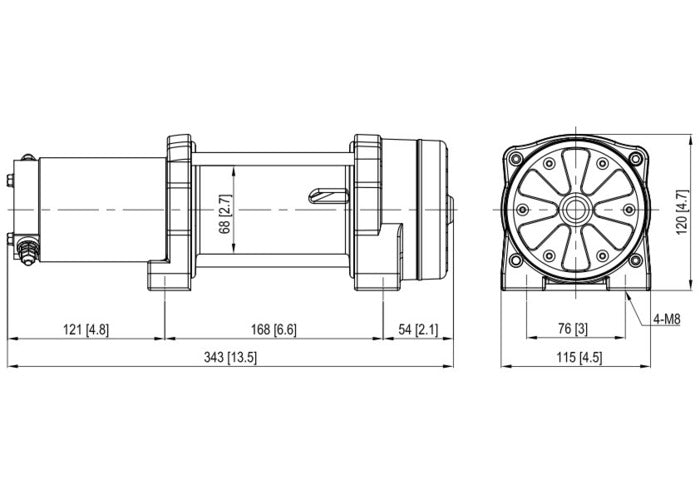

- Mounting bolts pattern 6.6" x 3" (168 x 76 mm)
