COMEUP USA

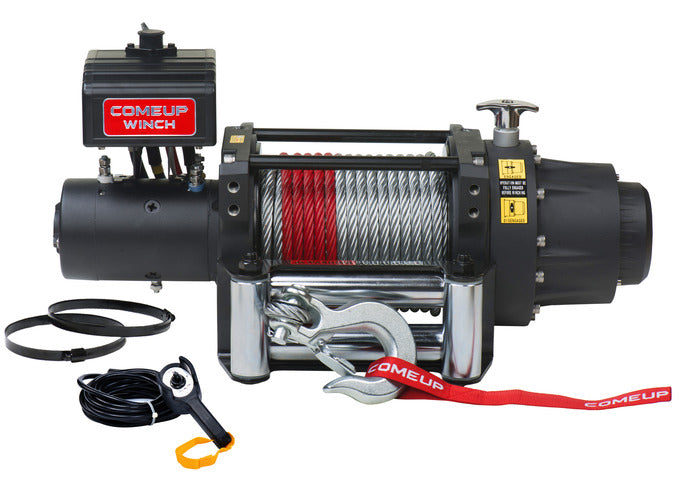

SEAL GEN2 16.5, 12V Winch

SEAL GEN2 16.5, 12V Winch

$1,823.00 USD
$1,990.00 USD $1,823.00 USD
Sale Sold out

Part Number 295620

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

 Line Pull,
kg / lb 		Line Speed,
mpm / fpm		 Amp. Draw, A
No load 5.5 / 18.0 50
1,814 / 4,000 2.9 / 9.5 90
3,629 / 8,000 2.4 / 7.9 180
4,536 / 10,000 1.8 / 5.9 230
7,484 / 16,500 1.4 / 4.6 355



Line Pull and Rope Capacity:

Layer of Rope Pull by layer, kg / lb Total Rope on the Drum, m / ft
1st 7,484 / 16,500 5.6 / 18.4
2nd 6,125 / 13,503 12.4 / 40.7
3rd 5,184 / 11,429 20.4 / 66.9
4th 4,494 / 9,908 27.4 / 90.0



Specifications:

  • Rated Line Pull 20,000 lb single line
  • Motor 5,220 w / 7.0 hp 12V series wound
  • Gear Ratio 3-stage planetary 343:1
  • Clutch (freespooling) Rotating ring gear
  • Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
  • Winch Construction Aluminum die cast housings with steel drum
  • Drum Size 3.5" x 8"L
  • Control Waterproof wired remote with thermometric indicator LED w/ 17’ (5 m) cord
  • Rope Type 6 x 29 - IWRC
  • Rope size 1/2" x 59’ (12.7 mm x 18 m )
  • Mounting Bolt Pattern 10" x 4.5" (254 x 114 mm), 10" x 6.5" (254 x 165 mm)
  • Winch Weight 132 lb
  • Gross Weight 169.7 lb
  • Warranty Limited lifetime warranty for mechanical components, three (3) year warranty for electrical components
  • Box Dimensions 29.1" x 10.6" x 19.5"
