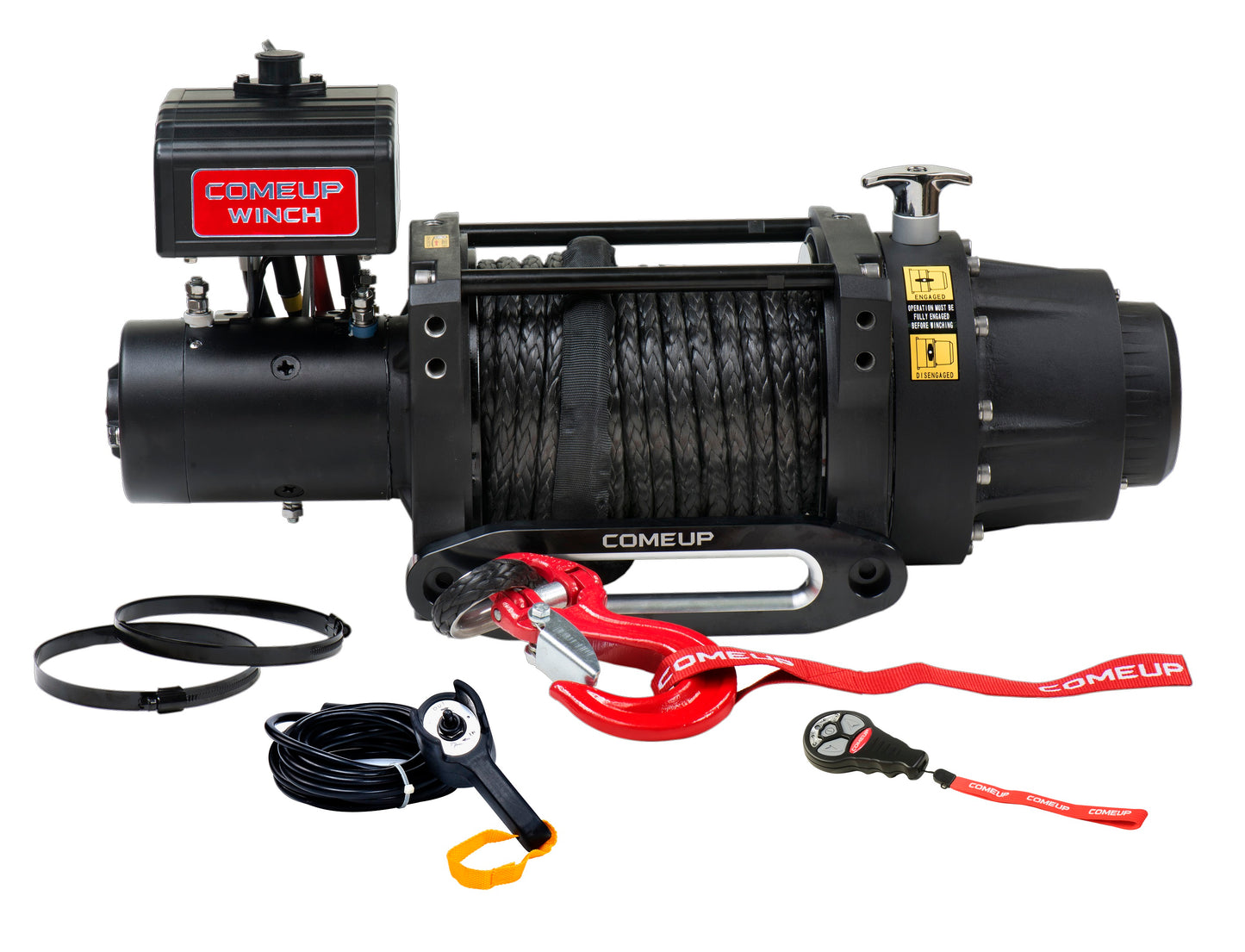

SEAL GEN2 16.5rs, 12V Winch

SEAL GEN2 16.5rs, 12V Winch

Regular price $2,288.00 USD
Regular price $2,500.00 USD Sale price $2,288.00 USD
Sale Sold out

Part Number 295660

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

 Line Pull,
kg / lb
Line Speed,
mpm / fpm
Amp. Draw, A
No load 5.6 / 18.4 50
1,814 / 4,000 3.0 / 9.8 90
3,629 / 8,000 2.5 / 8.2 180
4,536 / 10,000 1.9 / 6.2 230
7,484 / 16,500 1.4 / 4.6 355



Line Pull and Rope Capacity:

Layer of Rope Pull by layer, kg / lb Total Rope on the Drum, m / ft
1st 7,484 / 16,500 5.2 / 17.1
2nd 6,125 / 13,503 11.6 / 38.1
3rd 5,184 / 11,429 19.2 / 63.0
4th 4,494 / 9,908 25.0 / 82.0



Specifications:

  • Rated Line Pull 16,500 lbs (7,484 kg) single line
  • Motor 5.8 hp / 4,325w 12V Series Wound
  • Gear Ratio 3-Stage Planetary 343:1
  • Clutch (freespooling) Rotating Ring Gear
  • Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
  • Winch Construction Aluminum Die Cast Housing with Steel Drum

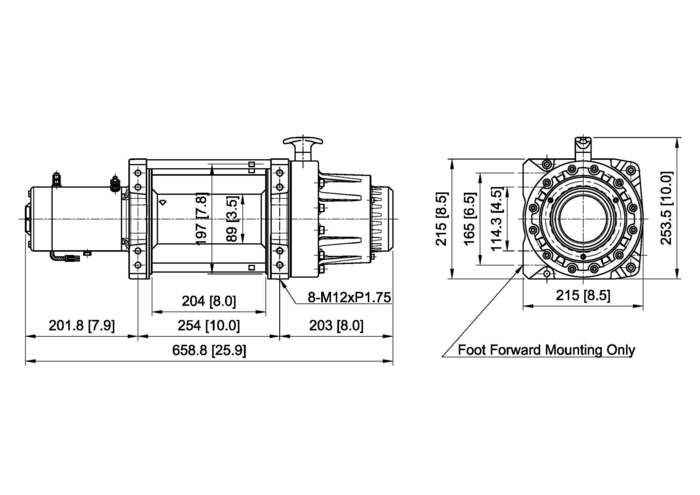

  • Drum Size 3.5" x 8" (89 x 204 mm)
  • Control Both built-in digital two way signal wireless remote control and waterproof remote with thermometric indicator LED w/17' (5 m) cord
  • Rope Type Synthetic Rope
  • Rope Size 1/2" x 82' (12 mm x 25 m)
  • Mounting Bolt Pattern 10" x 4.5" (254 x 114 mm), 10" x 6.5" (254 x 165 mm)
  • Winch Weight 132 lb (60 kg)
  • Gross Weight 150 lb (68 kg)
  • Warranty Limited lifetime warranty for mechanical components, three (3) year warranty for electrical components
  • Box Dimensions 27.2" x 10.6" x 15.9" (690 x 270 x 405 mm )
