COMEUP USA

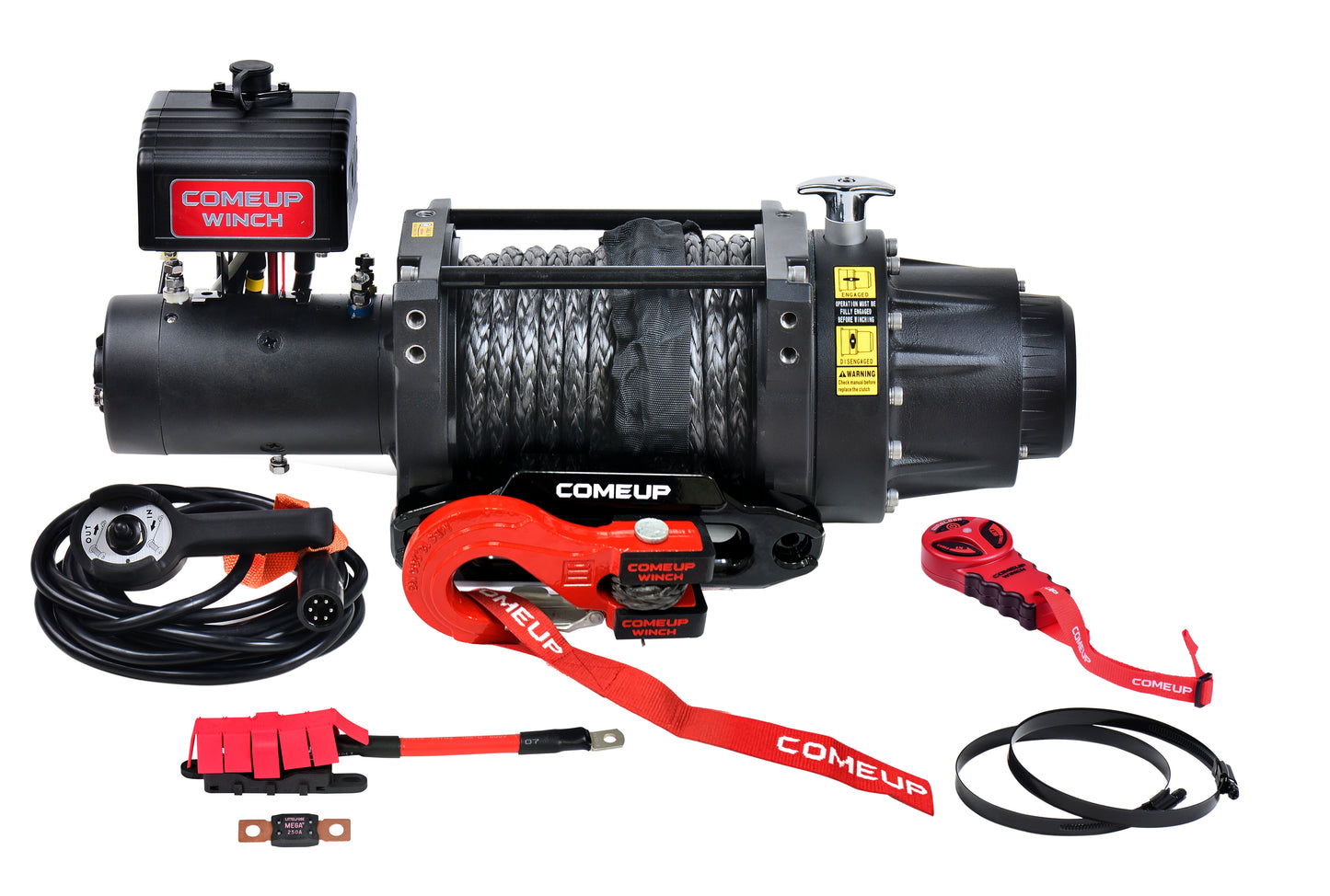

SEAL 20.0rs Trail Edition

SEAL 20.0rs Trail Edition

Regular price $2,622.98 USD
Regular price $2,860.00 USD Sale price $2,622.98 USD
Sale Sold out

Part Number 298232

Trail Edition: includes a BossHook-L and a 250A Fuse kit

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

 Line Pull,
kg / lb
Line Speed,
mpm / fpm
Amp. Draw, A
No load 4.5 / 14.8 60
1,814 / 4,000 2.1 / 6.9 150
3,629 / 8,000 1.8 / 5.9 190
4,536 / 10,000 1.4 / 4.6 260
7,484 / 16,500 1.1 / 3.6 340
9,072 / 20,000 0.4 / 1.3 410



Line Pull and Rope Capacity:

Layer of Rope Pull by layer, kg / lb Total Rope on the Drum, m / ft
1st 9,072 / 20,000 4.6 / 14.9
2nd 7,133 / 15,725 10.3 / 33.9
3rd 5,877 / 12,956 16.7 / 55.0


Specifications:

  • Rated Line Pull 20,000 lb single line
  • Motor 5,220 w / 7.0 hp 12V series wound
  • Gear Ratio 3-stage planetary 343:1
  • Clutch (freespooling) Rotating ring gear
  • Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
  • Winch Construction Aluminum die cast housings with steel drum
  • Drum Size 3.5" x 8"L
  • Control Both built-in digital signal two way wireless remote control and waterproof wired remote with thermometric indicator LED w/ 17’ (5 m) cord
  • Rope Type Synthetic rope
  • Rope Size 9/16" x 55'
  • Mounting Bolt Pattern 10" x 4.5" (254 x 114 mm), 10" x 6.5" (254 x 165 mm)
  • Winch Weight 109.3 lb
  • Gross Weight 140.2 lb
  • Warranty Limited lifetime warranty for mechanical components, three (3) year warranty for electrical components
  • Box Dimensions 29.1" x 10.6" x 19.5"
