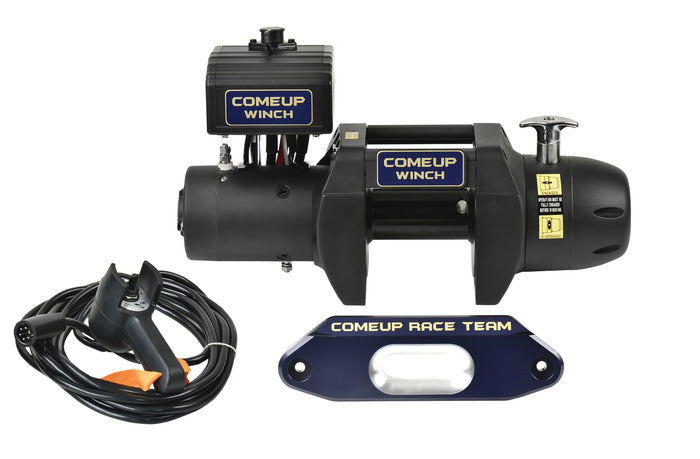

SEAL MadX 8.0s SD

SEAL MadX 8.0s SD

$1,043.00 USD
$1,140.00 USD $1,043.00 USD
Sale Sold out

Part Number 296088

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

 Line Pull,
kg / lb 		Line Speed,
mpm / fpm		 Amp. Draw, A
No load 25 / 82 45
907 / 2,000 10.8 / 35.4 125
1,814 / 4,000 8.5 / 27.9 249
2,722 / 6,000 4.1 / 13.5 378
3,630 / 8,000 1.0 / 3.3 500



Line Pull and Rope Capacity:

Layer of Rope Pull by layer, kg / lb Total Rope on the Drum, m / ft
1st 3,630 / 8,000 3.1 / 10.2
2nd 2,924 / 6,446 7.0 / 23.0
3rd 2,449 / 5,399 11.7 / 38.4
4th 2,106 / 4,643 15.2 / 50.0


Specifications:

  • Rated Line Pull 8,000 lb Single Line
  • Motor 5,250 w / 7.0 hp 12V series wound
  • Gear Ratio 3-stage planetary 67:1
  • Clutch (freespooling) Rotating ring gear
  • Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
  • Winch Construction Aluminum Die Cast Housing with Steel Drum

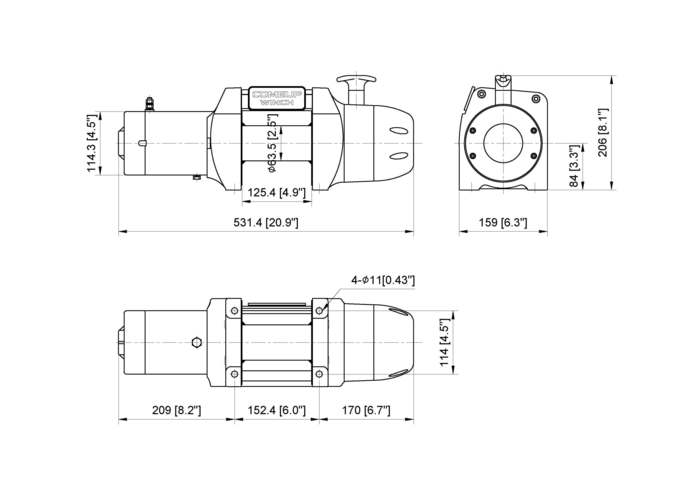

  • Drum Size 2.5” x 4.9”L
  • Control Waterproof remote with thermometric indicator LED w/ 17 ft cord
  • Mounting Bolt Pattern 6” x 4.5”
  • Winch Weight 57.3 lb
  • Gross Weigh 85 lb
  • Warranty Limited lifetime warranty for mechanical components, three (3) year warranty for electrical components
  • Box Dimensions 25.7 ” x 8.2 ” x 16.9”
