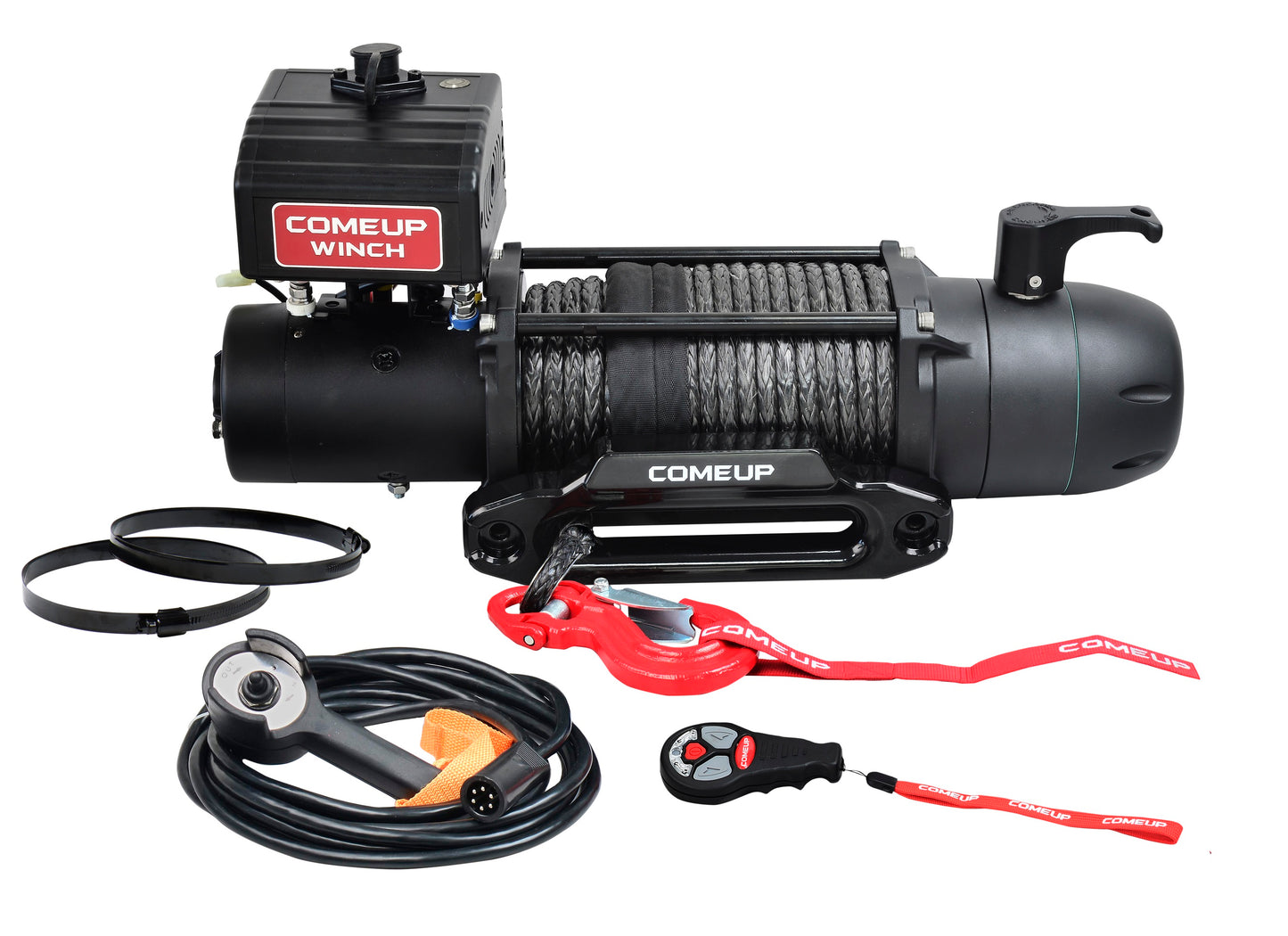

SEAL Slim 9.5rs 12V, W/ Synthetic Rope & Wireless Remote

SEAL Slim 9.5rs 12V, W/ Synthetic Rope & Wireless Remote

Regular price $1,338.00 USD
Regular price $1,460.00 USD Sale price $1,338.00 USD
Sale Sold out

Part Number 295051

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

 Line Pull,
kg / lb
Line Speed,
mpm / fpm
Amp. Draw, A
No load 14.8 / 48.6 60
907 / 2,000 4.8 / 15.7 115
1,814 / 4,000 3.6 / 11.8 210
2,722 / 6,000 2.8 / 9.2 245
3,629 / 8,000 2.3 / 7.6 280
4,309 / 9,500 2.2 / 7.2 380



Line Pull and Rope Capacity:

Layer of Rope Pull by layer, kg / lb Total Rope on the Drum, m / ft
1st 4,309 / 9,500 5.1 / 16.7
2nd 3,472 / 7,655 11.7 / 38.4
3rd 2,908 / 6,410 19.7 / 64.6
4th 2,501 / 5,514 30.5 / 100



 Specifications:

  • Rated Line Pull 9,500 lbs (4,309 kg) single line
  • Motor 5.0 hp / 3,730 w 12V Series Wound
  • Gear Ratio 3-Stage Planetary 159:1
  • Clutch (freespooling) Rotating Ring Gear
  • Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
  • Winch Construction Aluminum Die Cast Housing with Steel Drum
  • Drum Size 2.5" x 9" (63.5 x 228 mm)
  • Control Both built-in digital two way signal wireless remote control and waterproof remote with thermometric indicator LED w/17' (5 m) cord
  • Rope Type Synthetic rope
  • Warranty Limited lifetime warranty for mechanical components, three (3) year warranty for electrical components
  • Box Dimensions 26.9" x 8.2" x 16.9" (682 x 209 x 430 mm )
