Slim 12.5rsi [Trail Edition]

Slim 12.5rsi [Trail Edition]

$2,228.00 USD
$2,228.00 USD
Sale Sold out

Part Number 295080

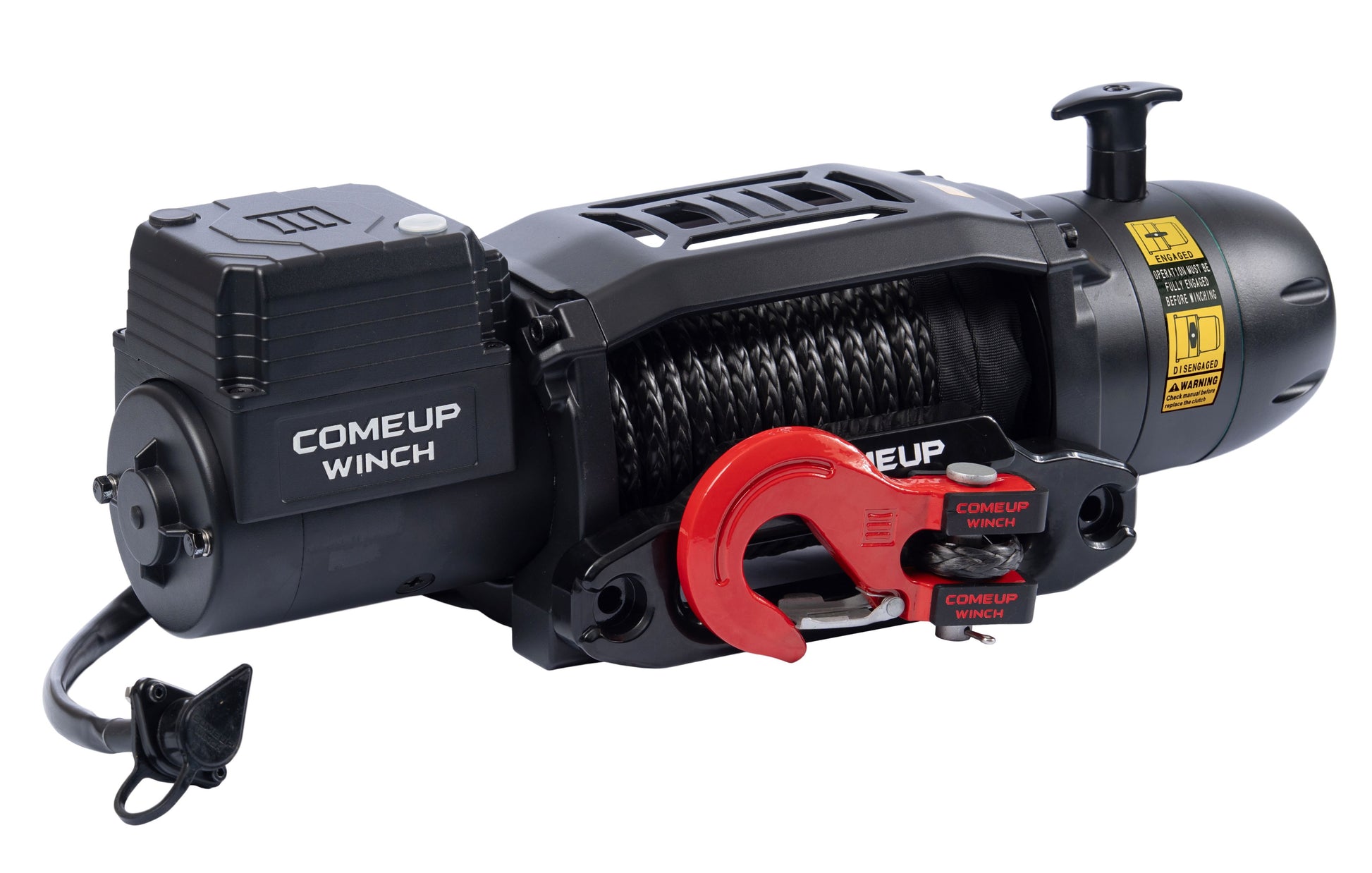

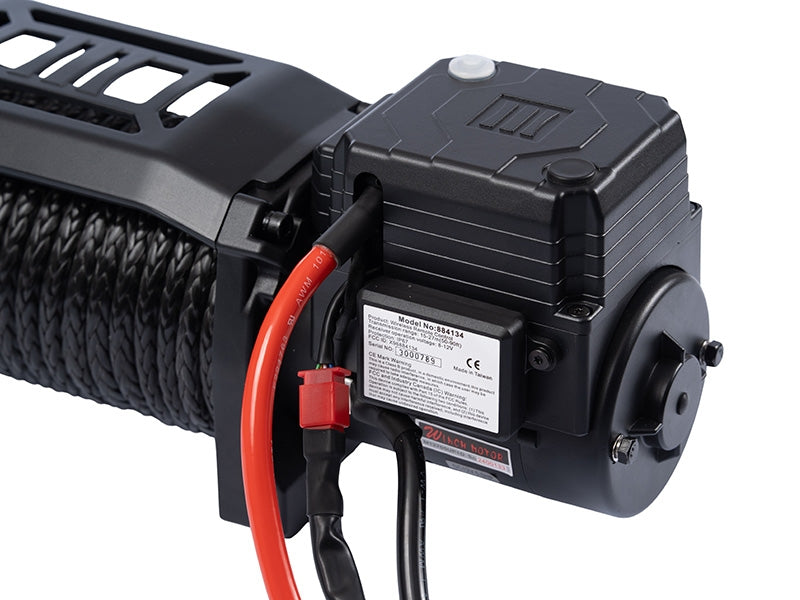

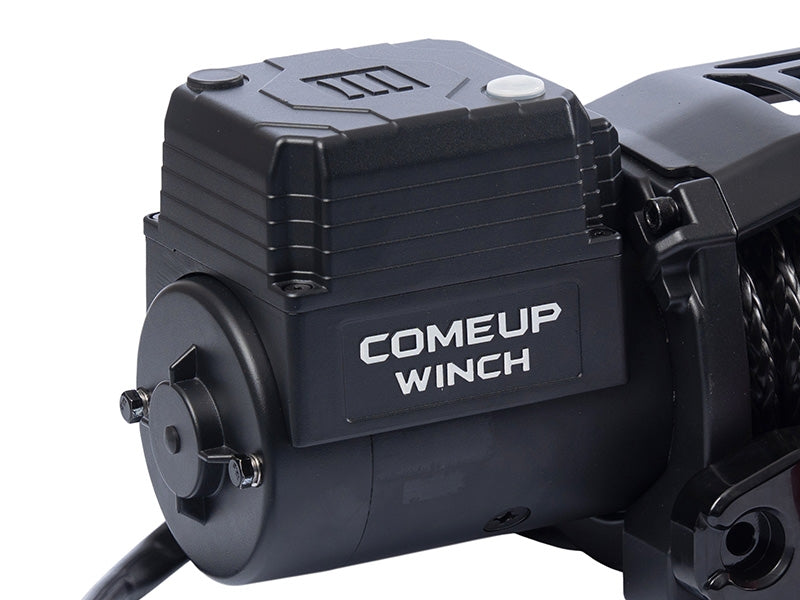

The Slim 12.5rsi Trail Edition is here. We engineered an integrated control box and motor, creating a single, radically compact unit. The result is a winch that disappears into your vehicle with a seamless, low-profile installation.

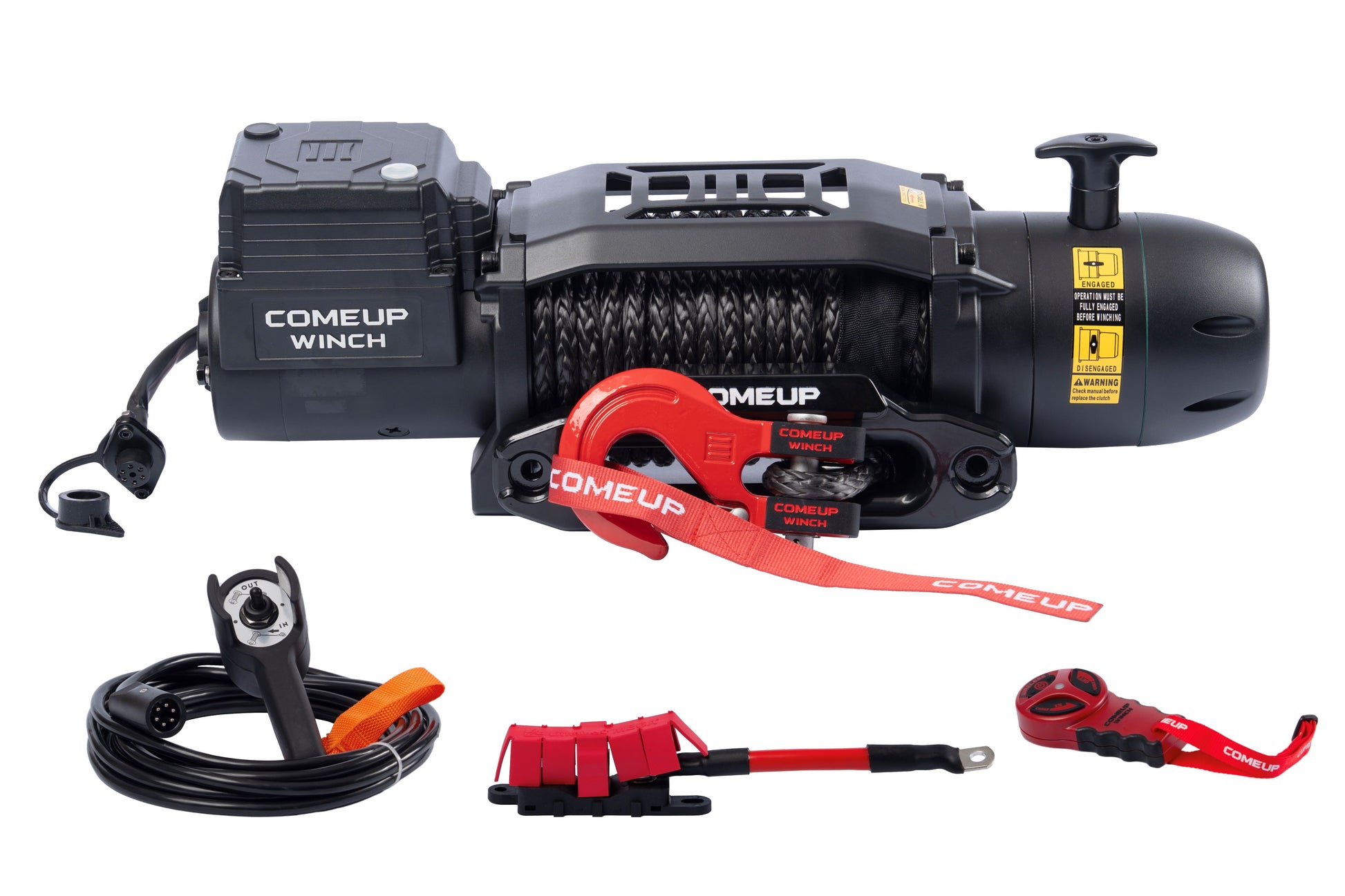

It’s not just how it looks. It’s how it works. Featuring the innovative BossHook M and a specialized fuse kit for a new level of protection and capability.

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

 Line Pull,
kg / lb 		Line Speed,
mpm / fpm		 Amp. Draw, A
No load 7.7 / 25.3 60
907 / 2,000 3.4 / 11.2 115
1,814 / 4,000 2.5 / 8.2 160
2,722 / 6,000 2.0 / 6.6 220
3,629 / 8,000 1.7 / 5.6 275
5,670 / 12,500 0.9 / 3.0 380



Line Pull and Rope Capacity:

Layer of Rope Pull by layer, kg / lb Total Rope on the Drum, m / ft
1st 5,670 / 12,500 4.8 / 15.7
2nd 4,499 / 9,919 10.9 / 35.7
3rd 3,729 / 8,221 18.5 / 60.7
4th 3,184 / 7,020 21.0 / 69.0



Specifications:

  • Rated Line Pull 12,500 lbs (5,670 kg) single line
  • Motor 5.0 hp / 3,730 w 12V Series Wound
  • Gear Ratio 3-Stage Planetary 225:1
  • Clutch (freespooling) Rotating Ring Gear
  • Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
  • Winch Construction Aluminum Die Cast Housing with Steel Drum

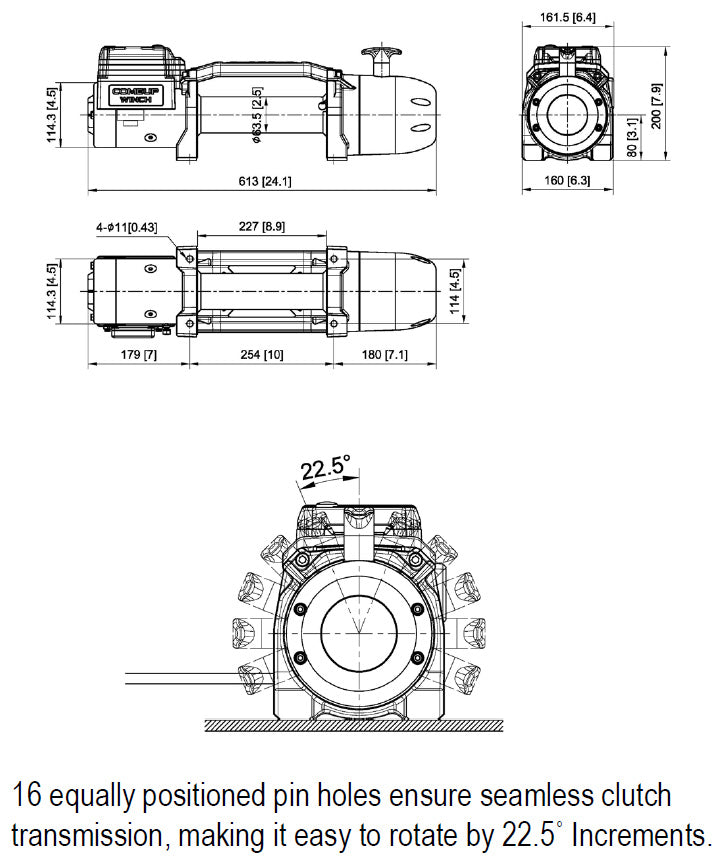

  • Drum Size 2.5" x 8.9" (63.5 x 227 mm)
  • Control Both built-in digital two way signal wireless remote control and waterproof remote with thermometric indicator LED w/17' (5 m) cord
  • Rope Type Synthetic Rope
  • Rope Size 7/16" x 69' (11 mm x 21 m)
  • Mounting Bolt Pattern 10" x 4.5" (254 x 114 mm)
  • Winch Weight 61.7 lb (28 kg)
  • Gross Weigh 89.1 lb (40.5 kg)
  • Warranty Limited lifetime warranty for mechanical components, three (3) year warranty for electrical components
  • Box Dimensions 26.9" x 8.2" x 16.9" (682 x 209 x 430 mm )
