Slim 9.5rs [Trail Edition]

Slim 9.5rs [Trail Edition]

$1,796.00 USD
$1,796.00 USD
Sale Sold out

Part Number 295163

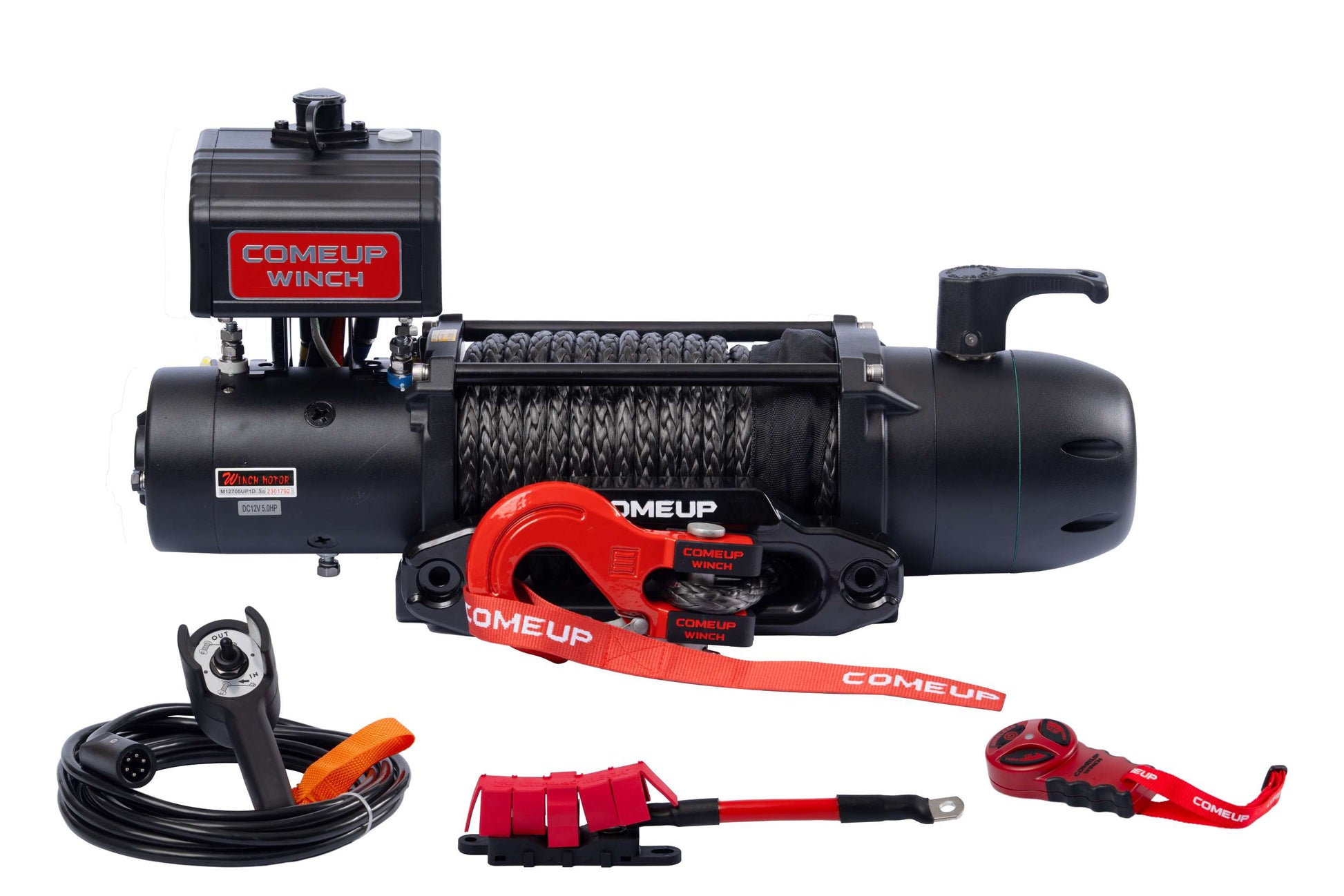

Introducing the COMEUP Slim 9.5rs Trail Edition, the ultimate winch designed for overland expedition use.  Packed with Trail Edition features, including the innovative BossHook-M and a specialized winch fuse kit for superior functionality and protection.

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

 Line Pull,
kg / lb 		Line Speed,
mpm / fpm		 Amp. Draw, A
No load 14.8 / 48.6 60
907 / 2,000 4.8 / 15.7 115
1,814 / 4,000 3.6 / 11.8 210
2,722 / 6,000 2.8 / 9.2 245
3,629 / 8,000 2.3 / 7.6 280
4,309 / 9,500 2.2 / 7.2 380



Line Pull and Rope Capacity:

Layer of Rope Pull by layer, kg / lb Total Rope on the Drum, m / ft
1st 4,309 / 9,500 5.1 / 16.7
2nd 3,472 / 7,655 11.7 / 38.4
3rd 2,908 / 6,410 19.7 / 64.6
4th 2,501 / 5,514 23.2 / 76



 Specifications:

  • Rated Line Pull 9,500 lbs (4,309 kg) single line
  • Motor 5.0 hp / 3,730 w 12V Series Wound
  • Gear Ratio 3-Stage Planetary 159:1
  • Clutch (freespooling) Rotating Ring Gear
  • Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
  • Winch Construction Aluminum Die Cast Housing with Steel Drum

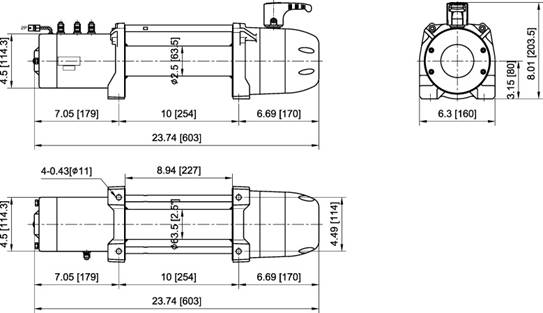

  • Drum Size 2.5" x 8.9" (63.5 x 227 mm)
  • Control Both built-in digital two way signal wireless remote control and waterproof remote with thermometric indicator LED w/17' (5 m) cord
  • Synthetic rope  3/8” x 76’ (10 mm x 23.2 m)
  • Warranty Limited lifetime warranty for mechanical components, three (3) year warranty for electrical components
  • Box Dimensions 26.9" x 8.2" x 16.9" (682 x 209 x 430 mm )
