COMEUP USA

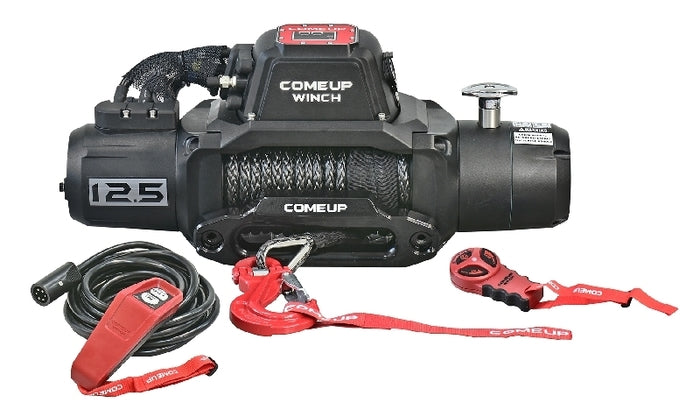

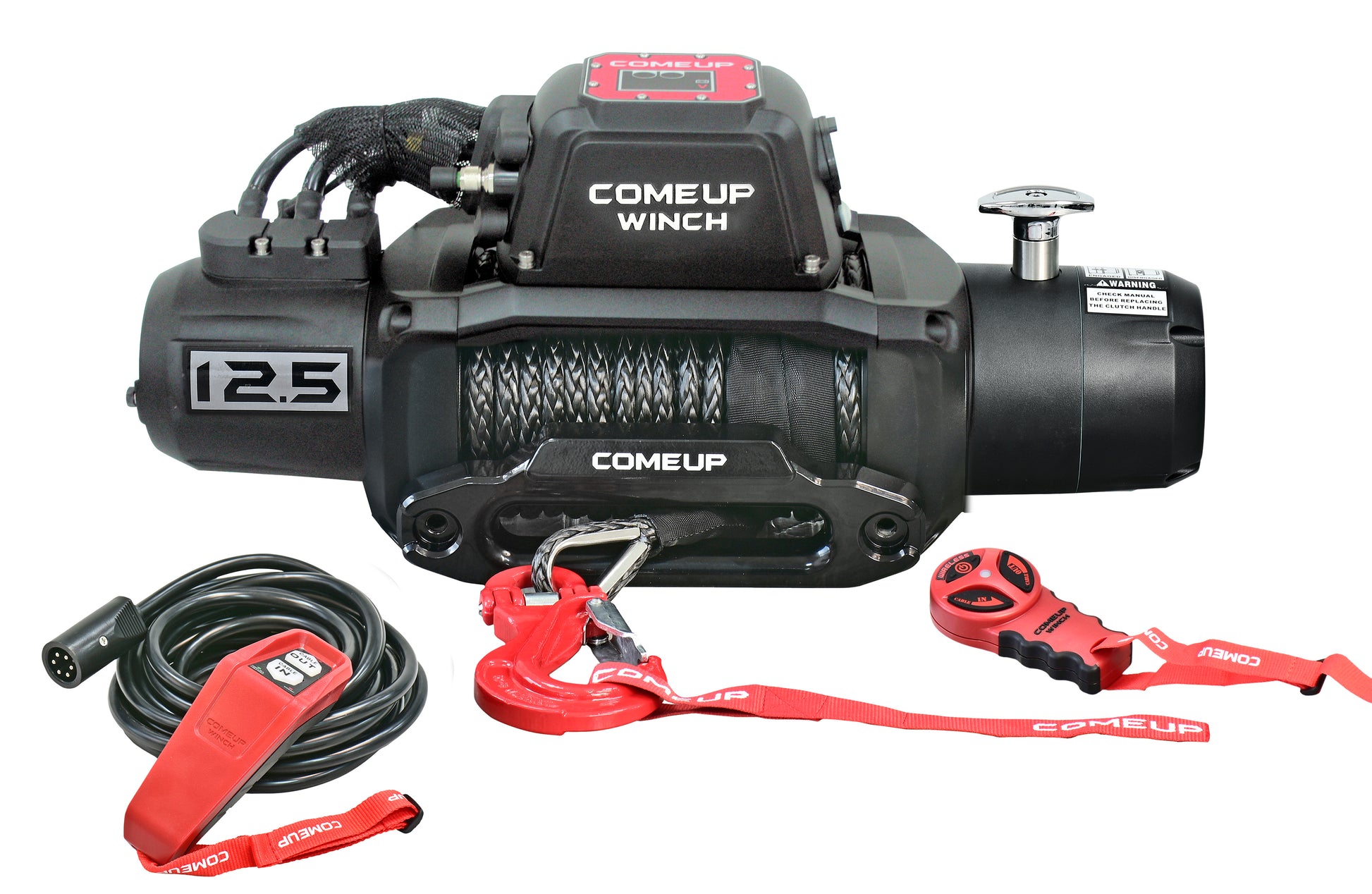

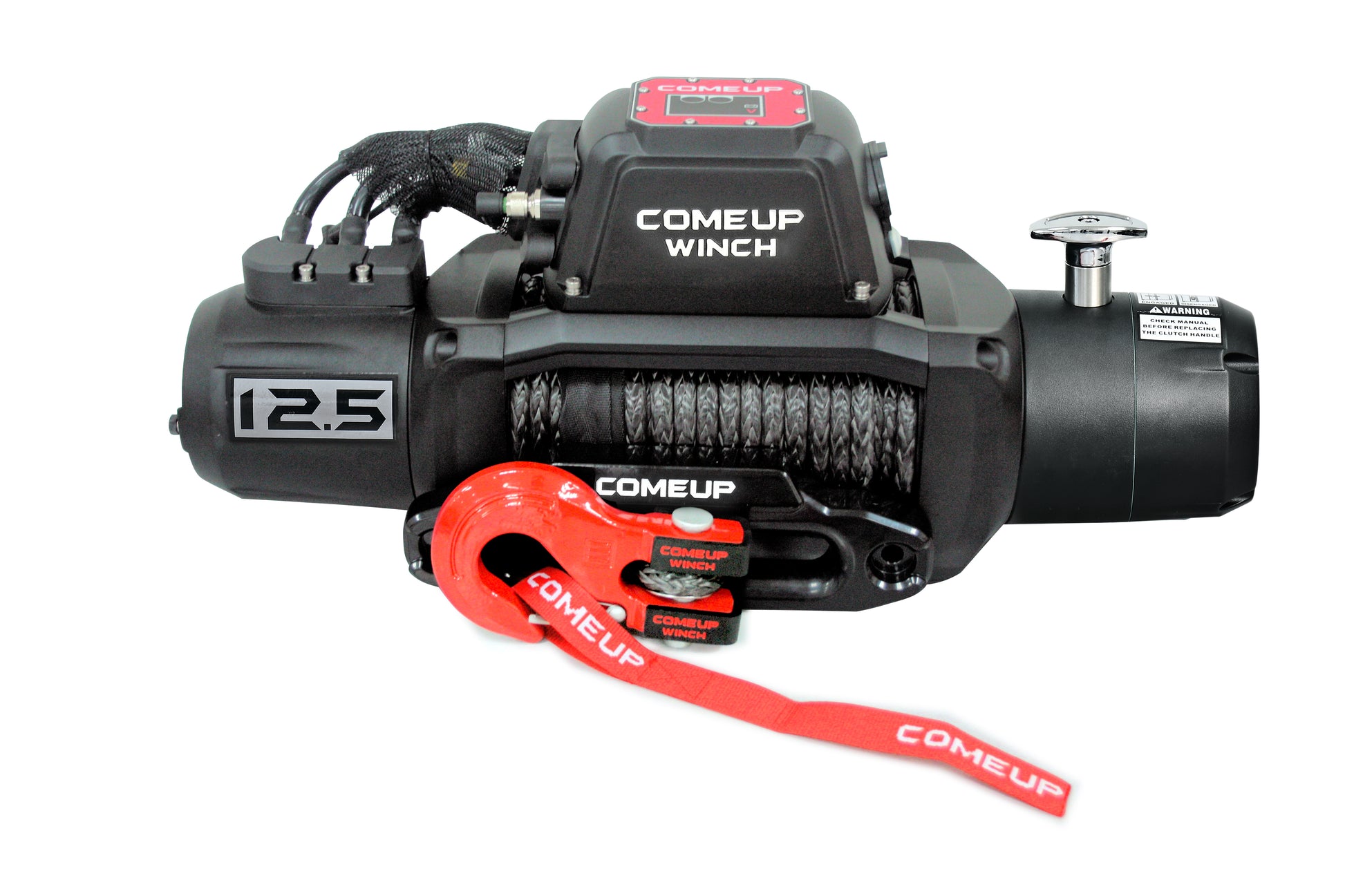

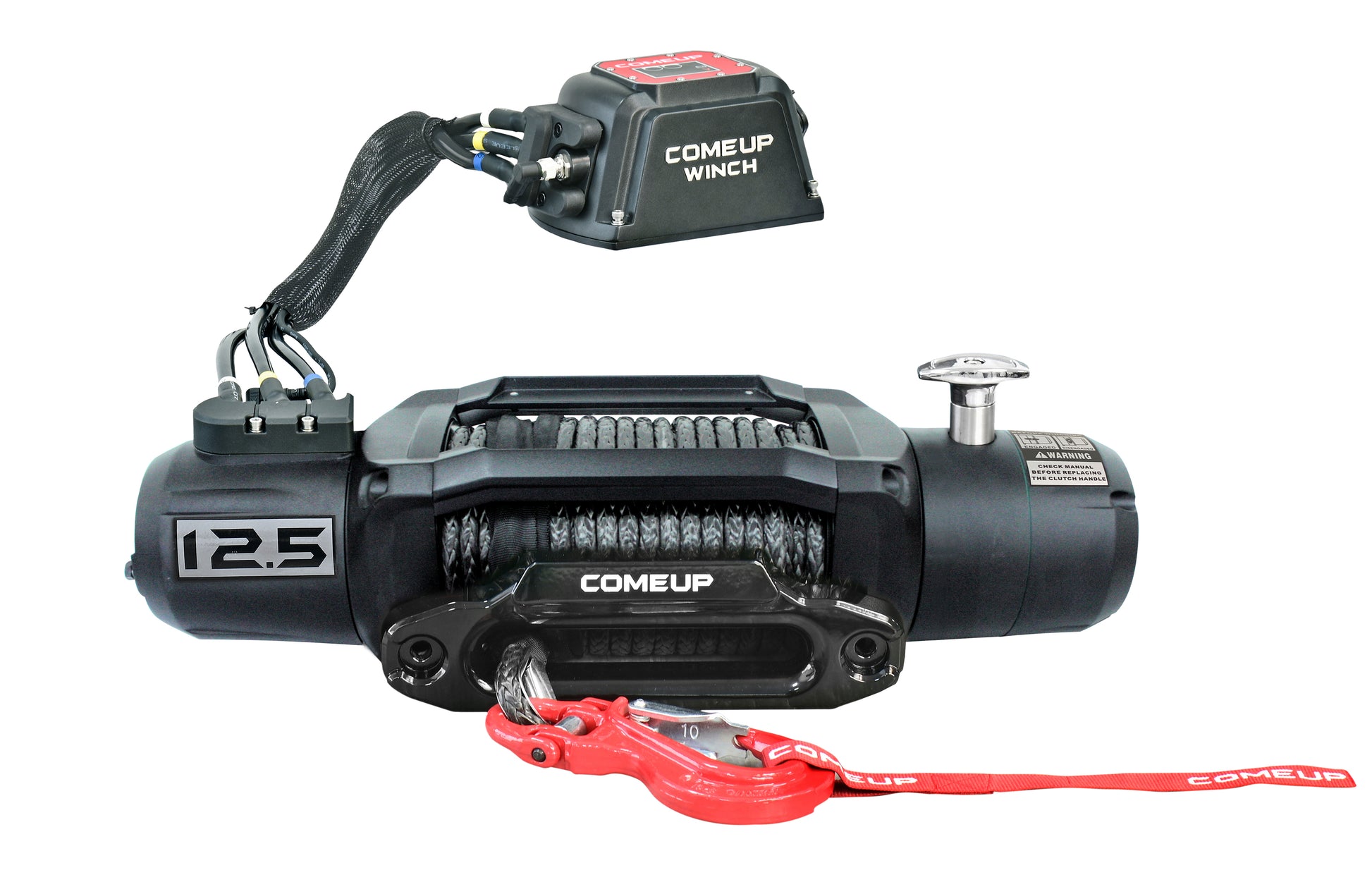

SOLO 12.5rs

SOLO 12.5rs

$1,780.00 USD
$1,950.00 USD $1,780.00 USD
Sale Sold out

Part Number 291285

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

 Line Pull,
kg / lb 		Line Speed,
mpm / fpm		 Amp. Draw, A
No load 7.7 / 25.3 45
907 / 2,000 3.4 / 11.2 75
1,814 / 4,000 2.5 / 8.2 160
2,722 / 6,000 2.0 / 6.6 230
3,629 / 8,000 1.7 / 5.6 300
5,670 / 12,500 0.9 / 3.0 470



Line Pull and Rope Capacity:

Layer of Rope Pull by layer, kg / lb Total Rope on the Drum, m / ft
1st 5,670 / 12,500 4.8 / 15.7
2nd 4,499 / 9,919 10.9 / 35.7
3rd 3,729 / 8,221 18.5 / 60.7
4th 3,184 / 7,020 25.0 / 82.0


Specifications:

  • Rated Line Pull 12,500 lb (5,670 kg) single line
  • Motor 5.0 hp / 3,730 w 12V Series Wound
  • Gear Ratio 3-Stage Planetary 225:1
  • Clutch (freespooling) Rotating Ring Gear
  • Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
  • Winch Construction Aluminum Die Cast Housing with Steel Drum
  • Drum Size 2.5" x 9" (63.5 x 228 mm)
  • Control Digital two-way wireless remote control and water-proof wired remote control with thermometric LED indicator
  • Rope Type Synthetic Rope
  • Rope Size 7/16” x 82’ (11 mm x 25 m)
  • Mounting Bolt Pattern 10" x 4.5" (254 x 114 mm)
  • Winch Weight 79.4 lb
  • Gross Weigh 93.9 lbs
  • Dimensions 26.9" x 8.2" x 16.9" (682 x 209 x 430 mm )
