SOLO 9.5rs Trail Edition (Coming Soon)

SOLO 9.5rs Trail Edition (Coming Soon)

$1,600.00 USD
$1,750.00 USD $1,600.00 USD
Sale Sold out

Part Number 291689

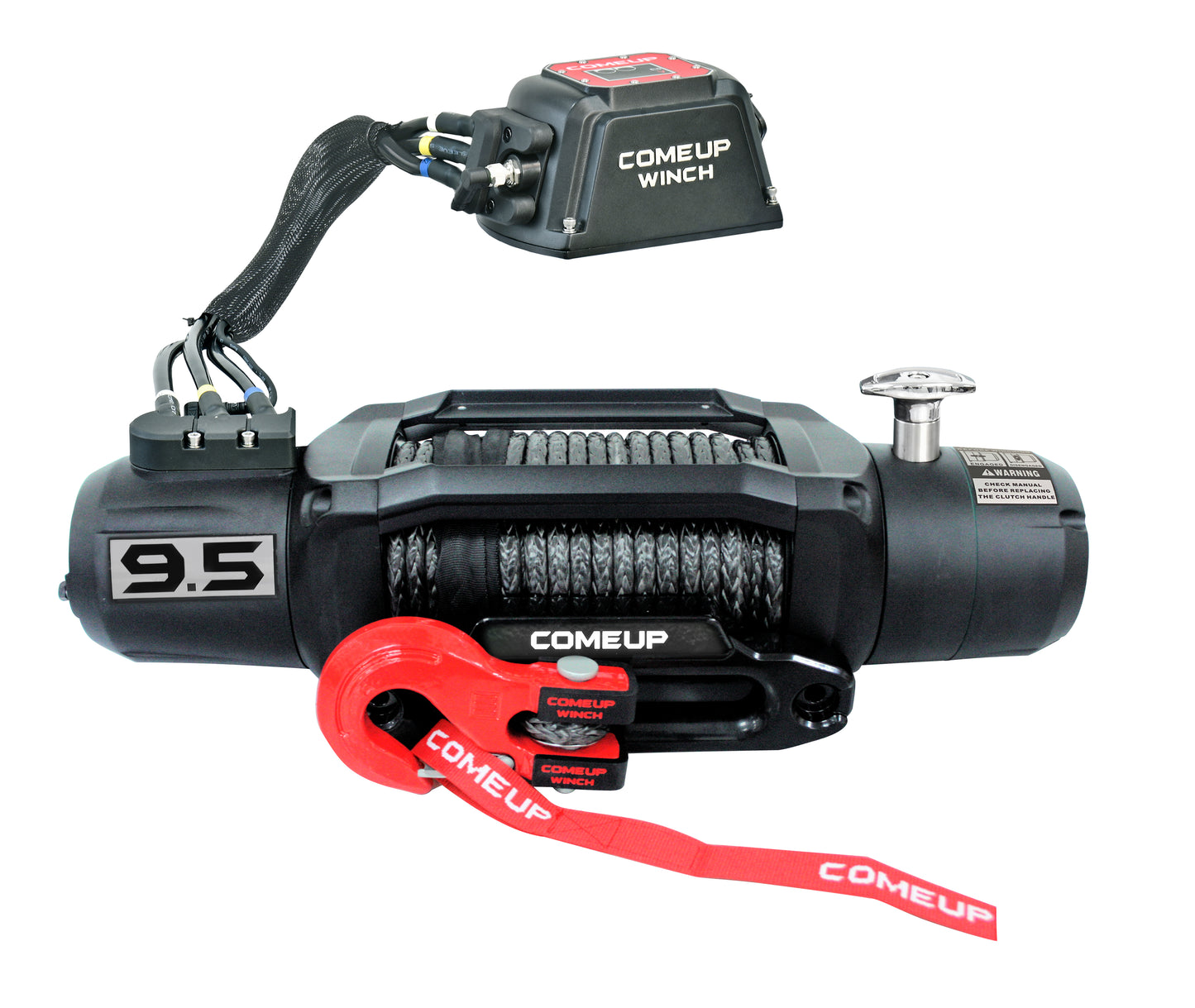

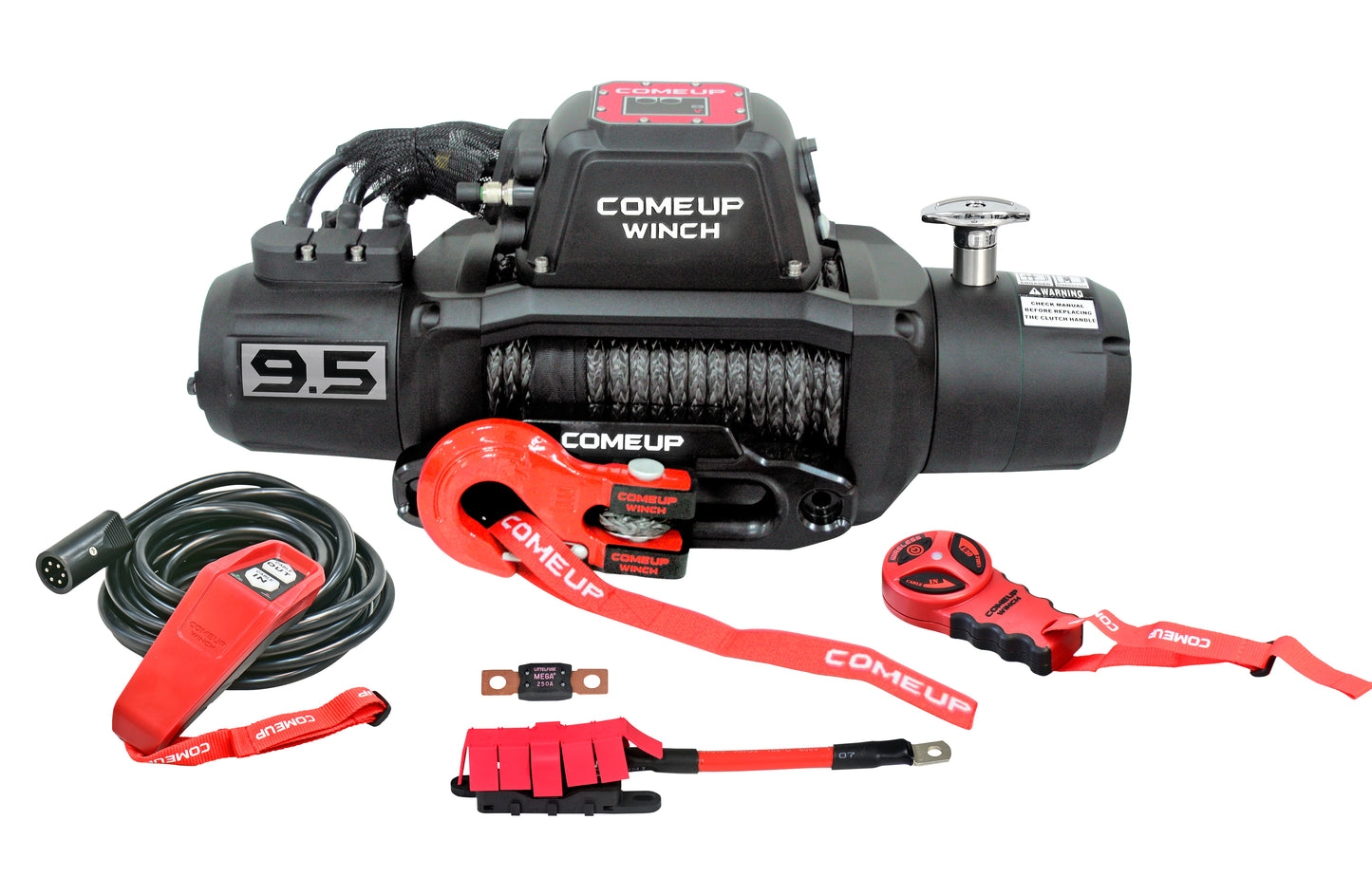

Introducing the COMEUP SOLO 9.5rs Trail Edition, the ultimate winch designed for overland expedition and packed with Trail Edition features includes the innovative BossHook-M and a specialized winch fuse kit for superior functionality and protection.

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

 Line Pull,
kg / lb 		Line Speed,
mpm / fpm		 Amp. Draw, A
No load 14.8 / 48.6 60
907 / 2,000 4.8 / 15.7 115
1,814 / 4,000 3.6 / 11.8 210
2,722 / 6,000 2.8 / 9.2 245
3,629 / 8,000 2.3 / 7.6 280
4,309 / 9,500 2.2 / 7.2 380



Line Pull and Rope Capacity:

Layer of Rope Pull by layer, kg / lb Total Rope on the Drum, m / ft
1st 4,309 / 9,500 5.1 / 16.7
2nd 3,472 / 7,655 11.7 / 38.4
3rd 2,908 / 6,410 19.7 / 64.6
4th 2,501 / 5,514 23.2/76.0


Specifications:

  • Rated Line Pull 9,500 lbs (4,309 kg) single line
  • Motor 5.0 hp / 3,730 w 12V Series Wound
  • Gear Ratio 3-Stage Planetary 159:1
  • Clutch (freespooling) Rotating Ring Gear
  • Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
  • Winch Construction Aluminum Die Cast Housing with Steel Drum
  • Drum Size 2.5" x 9" (63.5 x 228 mm)
  • Control Digital two-way wireless remote control and water-proof wired remote control with thermometric LED indicator
  • Rope Type Synthetic Rope
  • Rope Size 3/8" x 76' (10 mm x 23.2 m)
  • Mounting Bolt Pattern 10" x 4.5" (254 x 114 mm)
  • Winch Weight 76.9 lb
  • Gross Weigh 91.5 lb
  • Dimensions 26.9" x 8.2" x 16.9" (682 x 209 x 430 mm )
