The STS-series is not an offroad winch applied to cable roll-off systems. This product lineup is designed specifically for light to medium duty cable roll-off trucks and comes in two capacities.
The STS-series reflects our commitment to help our customers gain more sales with quality, design, innovation and service that benefit their customers.
Part Number 857137
Line Pull and Rope Capacity:
| Layer of Wire Rope |
Pull by Layer lb/ kg |
Total Rope on the Drum ft / m | Line Speed at 60 l/min (15.9 g/min) fpm / mpm |
| 1st | 5,670 / 12,500 | 1.0 / 3.3 | 6.0 / 20.0 |
| 2nd | 4,456 / 9,824 | 1.4 / 4.6 | 9.1 / 30.0 |
Line Speed and Amp. Draw ( 1st layer of wire rope on the drum ):
|
Line Pull, kg / lb |
Line Speed, mpm / fpm |
Amp. Draw, 12V |
| No load | 7.9 / 25.9 | 60 |
| 1,814 / 4,000 | 2.6 / 8.5 | 160 |
| 3,629 / 8,000 | 2.0 / 6.6 | 250 |
| 4,536 / 10,000 | 1.5 / 4.9 | 310 |
| 5,670 / 12,500 | 1.0 / 3.3 | 380 |
Specifications
Rated Line Pull 12,500 lbs (5,670 kg) single line
Motor 5.6 hp / 4,180w 12V series wound
Gear Ratio 315:1
Clutch (freespooling) Rotating Ring Gear
Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
Winch Construction Aluminum Die Cast Housing with Steel Drum

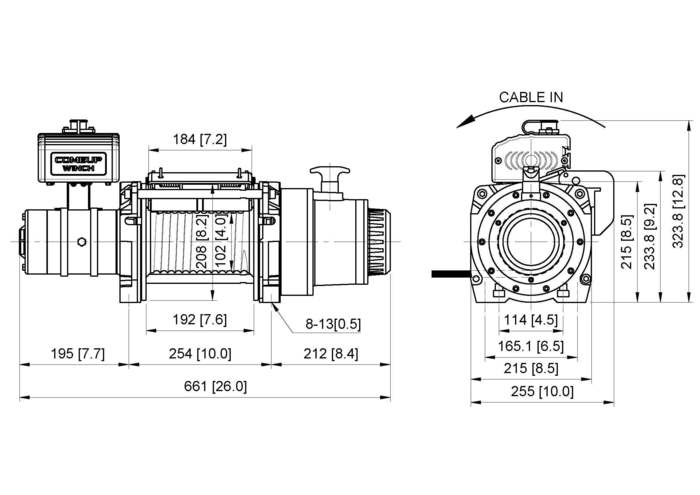

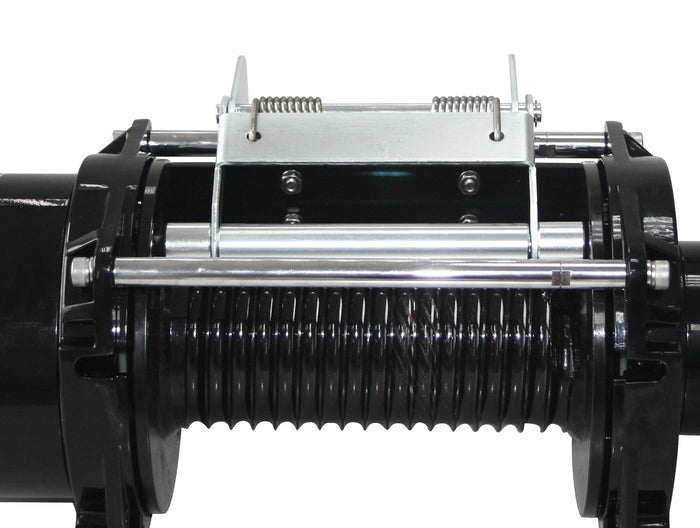

Drum Size 4.0” x 7.6” (102 x 192 mm)
Control Remote control w/32.8' (10 m) cord
Rope Size 7/16" x 30' (11.1 mm x 9.1m)
Mounting Bolt Pattern 10” x 4.5” (254 x 114 mm), 10” x 6.5” (254 x 165 mm)
Winch Weight 132 lbs / 60 kg
Gross Weight 159 lbs / 72 kg
Box Dimensions 778 x 288 x 459 mm (30.6” x 11.3” x 18”)
