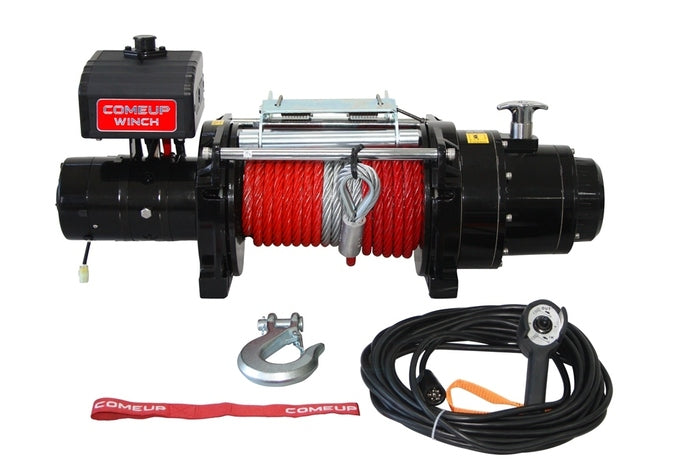

COMEUP USA
STS-15010
STS-15010
Regular price
$2,000.00 USD
Regular price
Sale price
$2,000.00 USD
Unit price
/
per
Couldn't load pickup availability
The STS-series is not an offroad winch applied to cable roll-off systems. This product lineup is designed specifically for light to medium duty cable roll-off trucks and comes in two capacities.
The STS-series reflects our commitment to help our customers gain more sales with quality, design, innovation and service that benefit their customers.
Part Number 857380
Line Pull and Rope Capacity:
| Layer of Wire Rope |
Pull by Layer lb/ kg |
Total Rope on the Drum ft / m | Line Speed at 60 l/min (15.9 g/min) fpm / mpm |
| 1st | 6,804 / 15,000 | 1.0 / 3.3 | 6.0 / 20.0 |
| 2nd | 5,570 / 12,280 | 1.4 / 4.6 | 9.1 / 30.0 |
Line Speed and Amp. Draw ( 1st layer of wire rope on the drum ):
|
Line Pull, kg / lb |
Line Speed, mpm / fpm |
Amp. Draw, 12V |
| No load | 8.4 / 27.6 | 45 |
| 1,814 / 4,000 | 2.7 / 8.9 | 150 |
| 3,629 / 8,000 | 2.4 / 7.9 | 210 |
| 4,536 / 10,000 | 2.1 / 6.9 | 260 |
| 5,443 / 12,000 | 1.5 / 4.9 | 300 |
| 6,804 / 15,000 | 1.0 / 3.3 | 370 |
Specifications:
- Rated Line Pull 15,000 lbs (6,804 kg) single line
- Motor 7.0 hp / 5,220w 12V series wound
- Gear Ratio 315:1
- Clutch (freespooling) Rotating Ring Gear
- Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
- Winch Construction Aluminum Die Cast Housing with Steel Drum

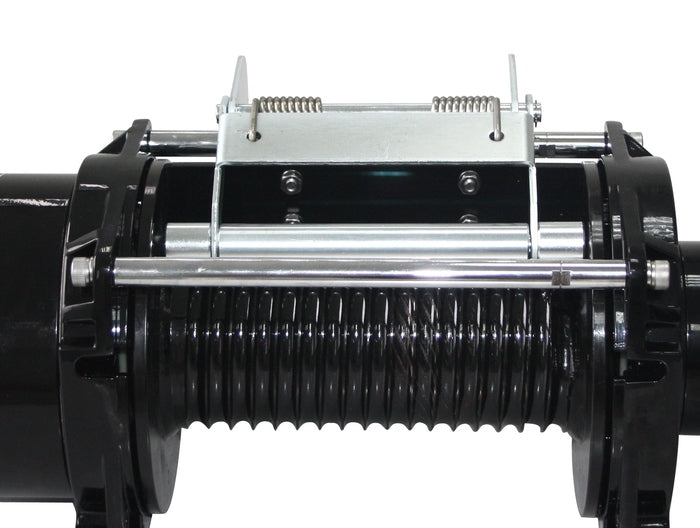

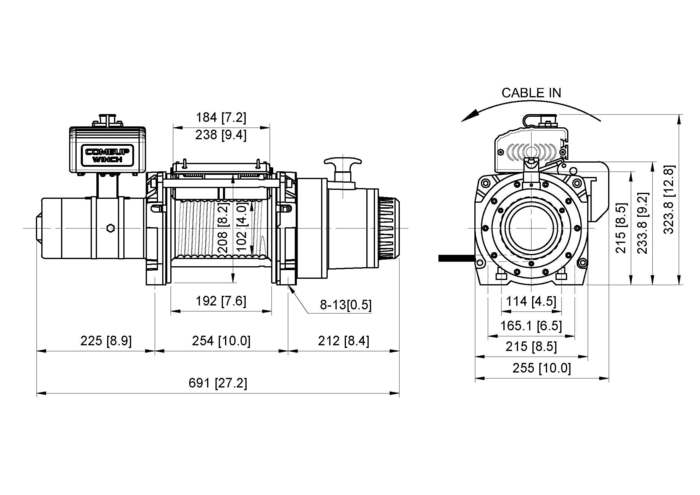

- Drum Size 4.0” x 7.6” (102 x 192 mm)
- Control Remote control w/32.8' (10 m) cord
- Rope Size 1/2" x 30' (12.7mm x 9.1m)
- Mounting Bolt Pattern 10” x 4.5” (254 x 114 mm), 10” x 6.5” (254 x 165 mm)
- Winch Weight 137 lbs / 62 kg
- Gross Weight 163 lbs / 74 kg
- Box Dimensions 778 x 288 x 459 mm (30.6” x 11.3” x 18”)
