COMEUP USA

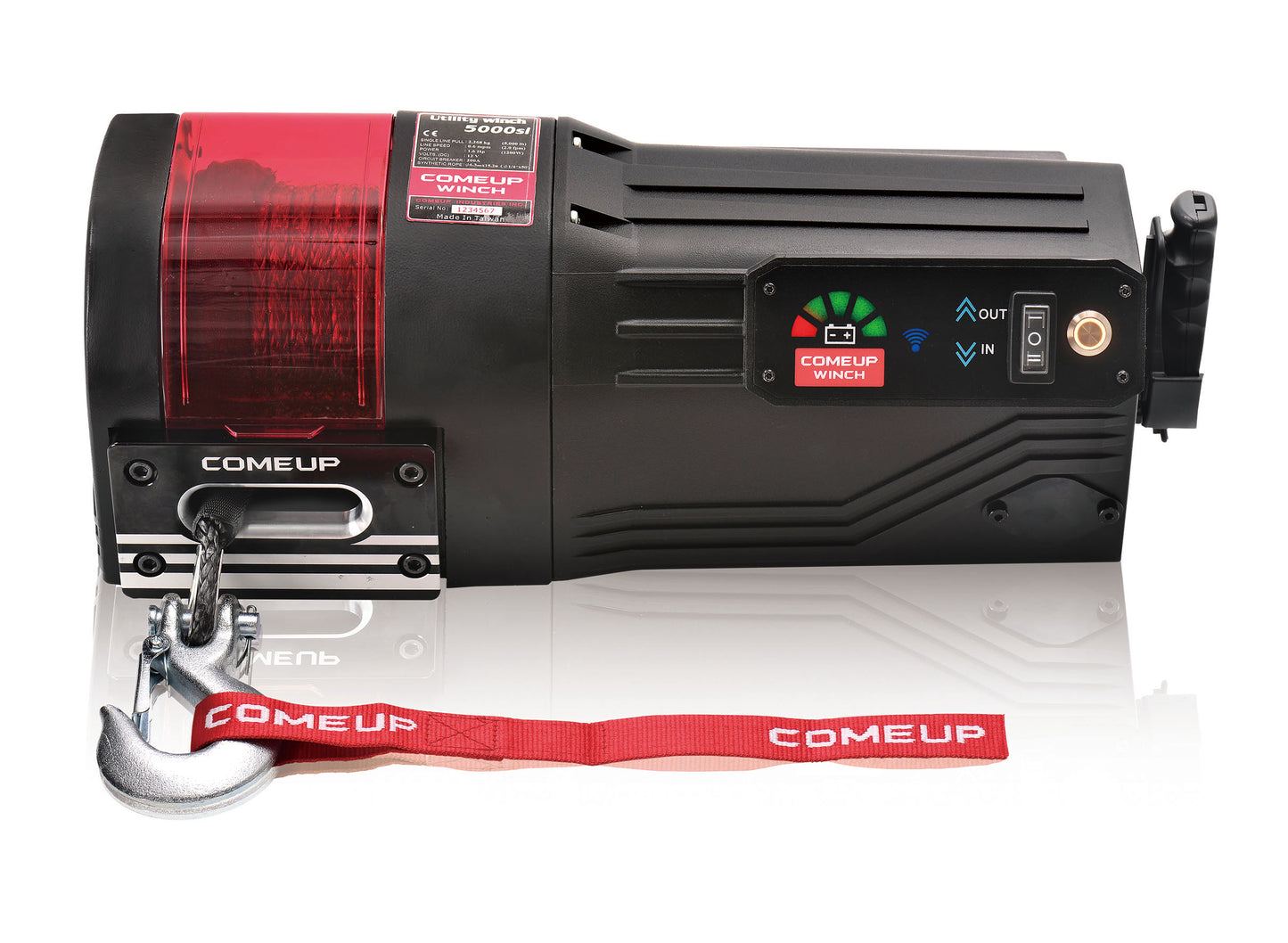

UW-5000si 12V, Synthetic Rope

UW-5000si 12V, Synthetic Rope

Regular price $923.00 USD
Regular price $1,009.00 USD Sale price $923.00 USD
Sale Sold out

Part Number 645010

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull,
kg / lb
Line Speed,
mpm / fpm
Amp. Draw, A
No load 5.5 / 18.0 25
454 / 1,000 5.0 / 16.4 75
907 / 2,000 3.6 / 11.8 140
1,361 / 3,000 2.5 / 8.2 210
1,814 / 4,000 1.4 / 4.6 310
2,268 / 5,000 1.0 / 3.3 380



Line Pull and Rope Capacity:

Layer of Rope Pull by layer, kg / lb Total Rope on the Drum, m / ft
1st 2,268 / 5,000 2.4 / 7.9
2nd 1,876 / 4,136 5.3 / 17.4
3rd 1,600 / 3,527 8.7 / 28.6
4th 1,394 / 3,073 12.6 / 41.4
5th 1,235 / 2,722 15.2 / 50



Specifications:

  • Rated Line Pull 5,000 lb (2,268 kg) single line
  • Motor 1,300 w / 1.74 hp 12V permanent magnet
  • Gear Ratio 3-Stage Planetary 170:1
  • Clutch (freespooling) Sliding ramping
  • Brake Automatic load-holding mechanical brake
  • Drum Size 2.1" x 3.3" (54 x 83 mm)
  • Control Wireless remote control and On-board control switch
  • Rope Type Synthetic Rope SK-75
  • Rope Size 1/4" x 50'

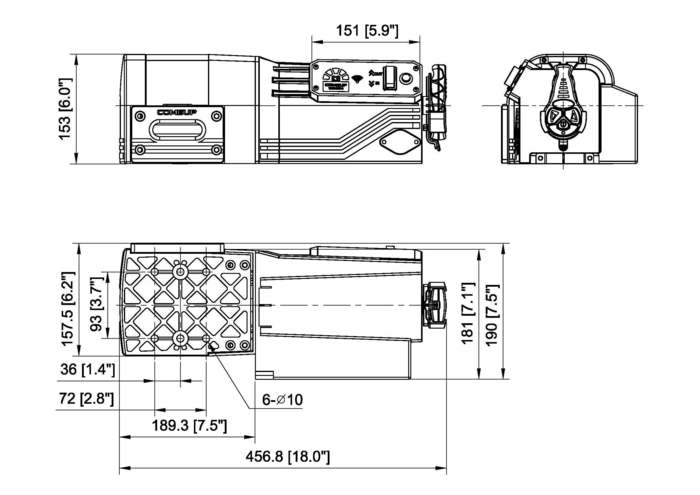

  • Mounting Bolt Pattern 3.4" x 3.7" (86 x 93 mm)
  • Winch Weight (including rope) 28 lb
  • Box Dimensions 18.2" x 10.7" x 7.3" (462 x 271 x 185 mm)
